Steinmeyer Digital Passameter 3902
Digital micrometer with turnable LED display and tolerance mode, device temperature monitoring, USB interface, and optional software
Passameters are adjustable snap gauges which are mostly used for measuring and testing of round-cut and milled parts. They replace a large number of fixed gauges whilst this device also has the advantage of a number display if there are deviations to the preset value.

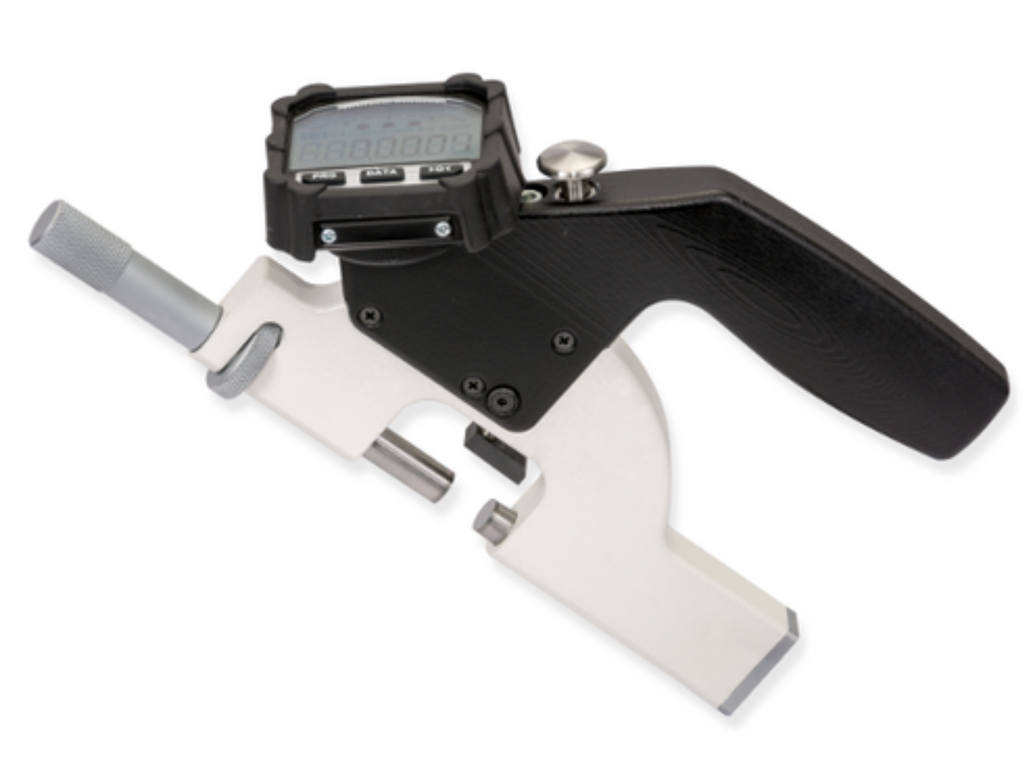

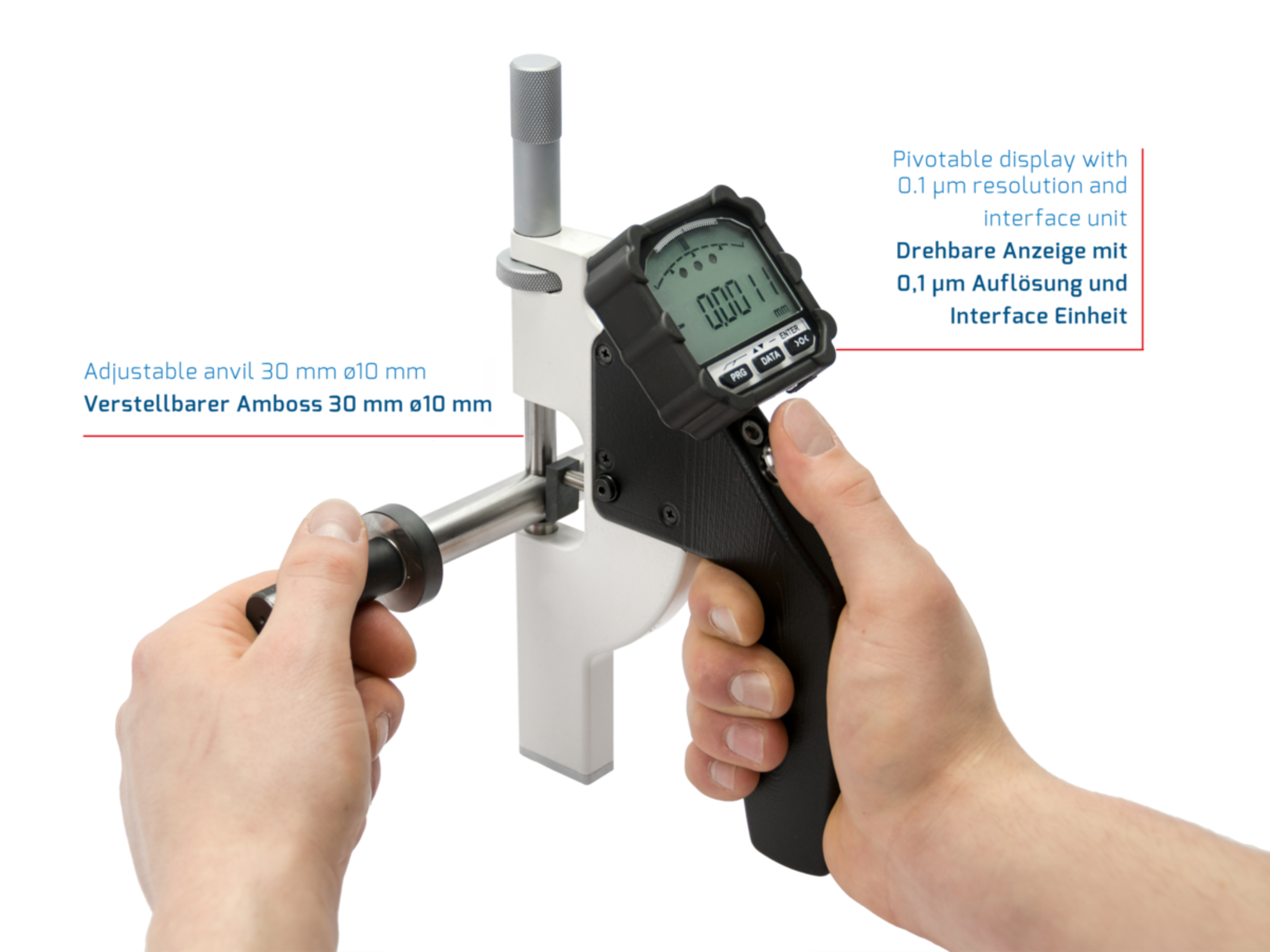

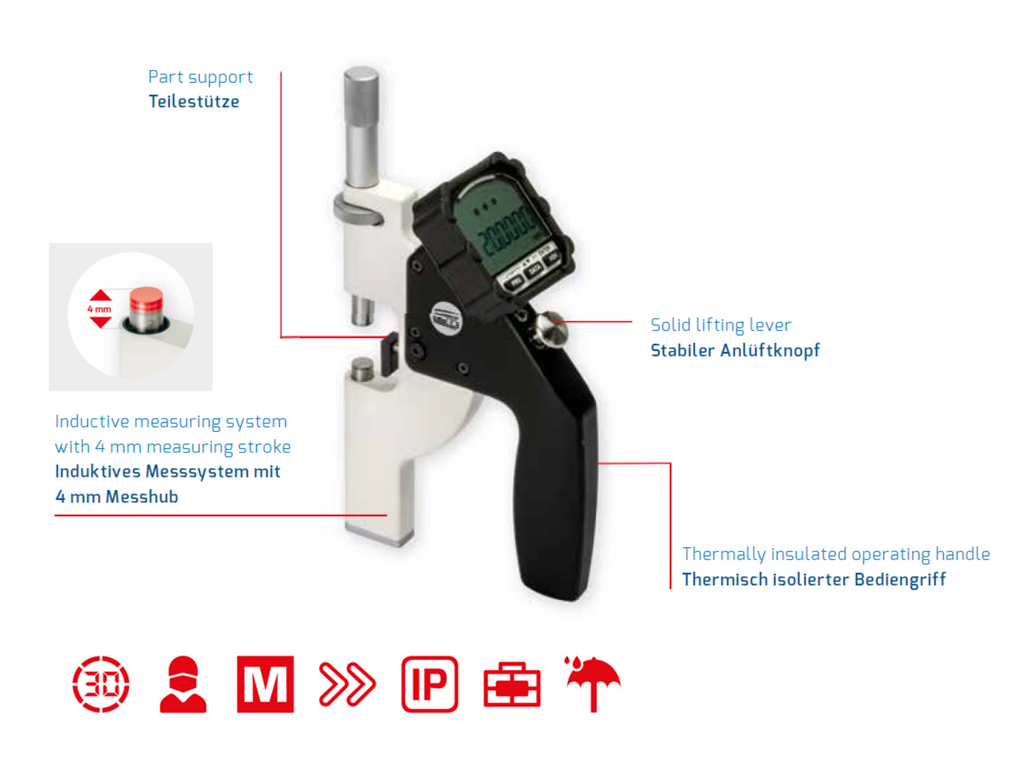

The digital passameter with a solid measuring equipment body and a novel inductive measuring system achieves a very high measuring accuracy and repeatability. The weight of the measuring tool rests on the workpiece due to the anvil which can be adjusted from the top. The measuring probe which is moved in from below has a free stroke of 4 mm and ensures a very high repeatability thanks to its constant measuring force. The display resolution is 0.1 µm. The large measuring surface of 10 mm ensures stable support on the specimen. All recorded measuring values can be processed externally with an optional wireless module. The adjustable tolerance function simplifies the use in serial measurements.
Programmable with the optional software FMS-SD1 direct via cable. All internal functions like calibration, LED function and colours, indication bar, measuring mode or password lock can be done via PC.
Description
- Standard: DIN 863 | DAkkS calibrated acc. to DIN EN ISO/IEC 17025:2018
- Measuring range: 0 - 205 mm (depending on version)
- Resolution: < 0,0001 mm (< 0,1 µm) / unit change possible mm/inch

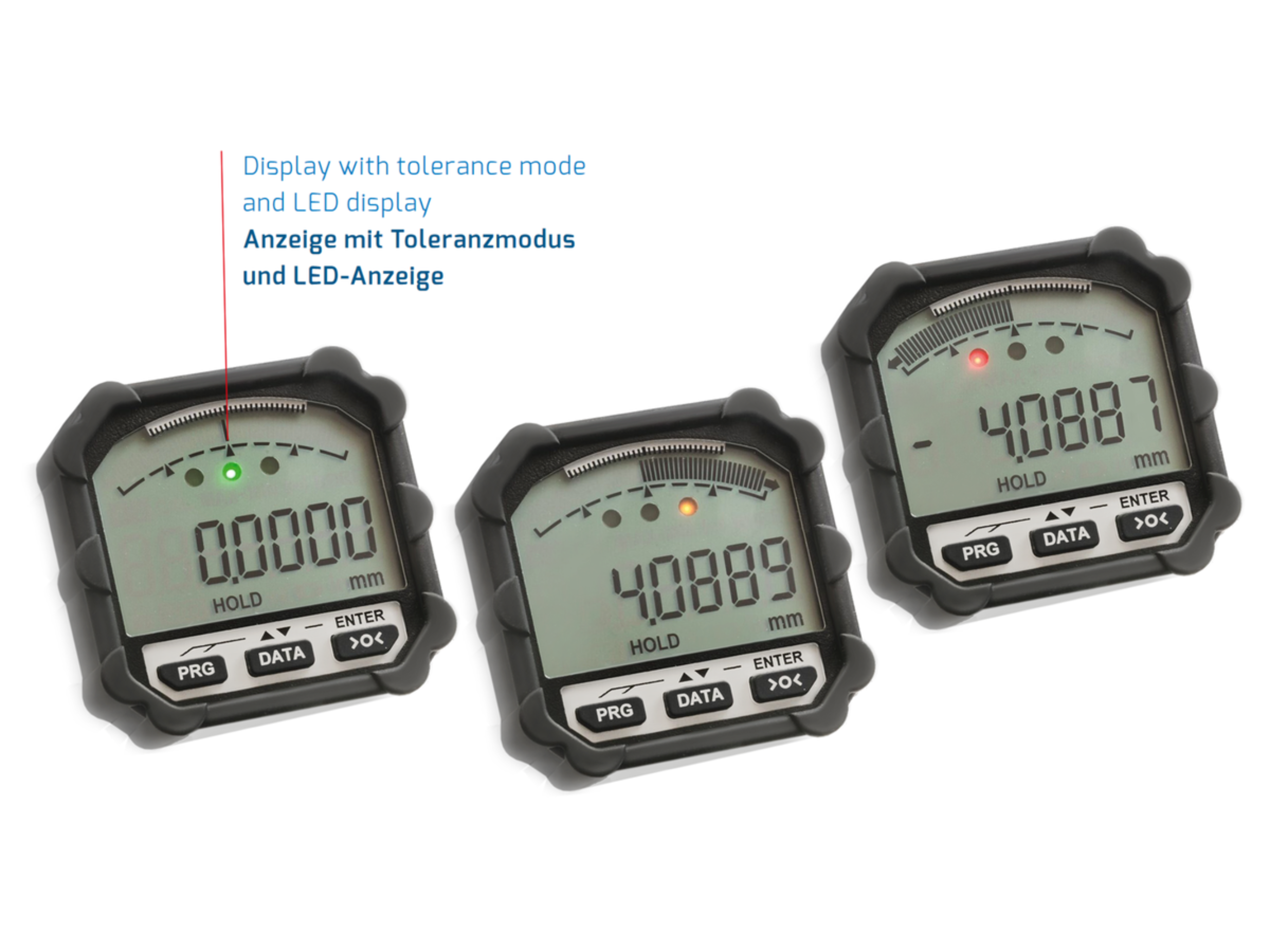

- Display: LCD display (turnable) with tolerance deviation, device temperature monitoring
- Data interface: Triple I (USB cable or Wireless)
- Optionally available: software, device holder, measuring holder
Application
- to measure precision components
- fast and simple serial testing by lifting button and LED tolerance display
- suitable for use in measuring rooms or close to production (IP 65)
All images are for representation only.
Technical Data
| Article | Digitalpassameter 3902 |
| Standard | DIN 863 |
| IP protection class | IP 65 |
| Measurement | digital |
| Product type | passameter, adjustable snap gauge, micrometer |
| Resolution (mm) | < 0.0001 mm (< 0.1 µm) |
| Resolution (inch) | < 0.000005 inch |
| Repeatability | < 0.0003 mm (< 0.3 µm) |
| Flatness (measuring surfaces) | < 0.0003 mm (< 0.3 µm) |
| Parallelism (measuring surfaces) | < 0.0005 mm (< 0.5 µm) |
| Diameter (measuring surfaces) | 10 mm |
| Measuring stroke of the sensor | 4 mm |
| Measuring force standard | 12 - 18 N |
| Measuring force special | 10 N |
| Weight (version 0 - 30 mm) | 0.9 kg |
| Interface | Triple I (USB cable or wireless) |
| Software functionality | Yes |
| Display / digit height | 7 digits / 10 mm |
| Turnable display element | Yes |
| Unit change | mm / inch |
| Display options | MIN / MAX / BEAT / MW / - measurement mode |
| Conversion factor - Measurement mode | Yes |
| Reference mode | I / II |
| Tolerance input | Traffic light function, acoustic output |
| Reversal of measuring direction | Yes |
| Key lock | HOLD function |
| Device temperature monitoring | Yes |
| Automatic power off | Yes |
| Battery | CR2032 |
| Operating time | approx. 2000 h |
| Measuring surfaces made of CBN | on request |
| Packing | stable box |
