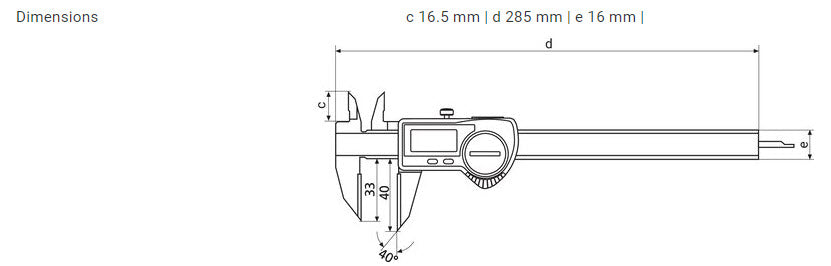

Digital special calipers MarCal 16 EWR-AR
Measuring range : 0 - 200 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
FunctionsON/OFF, AUTO-ON / OFF, mm/inch, LOCK function (key lock), RESET (set display to zero), DATA (data transmission via connection cable)
Application
- Outer measuring surfaces made of carbide
- For marking out workpieces
Product features
- High contrast digit display
- Locking screw above
- Lapped guideway
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
Package containsbattery, test certificate, instruction manual, case
