MitutoyoSKU: 331-261-30
List price: £631.00 Offer price: £461.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Add your Gauge ID, asset number or company name.

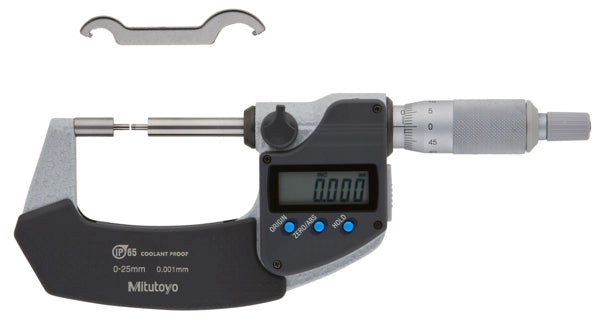

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:

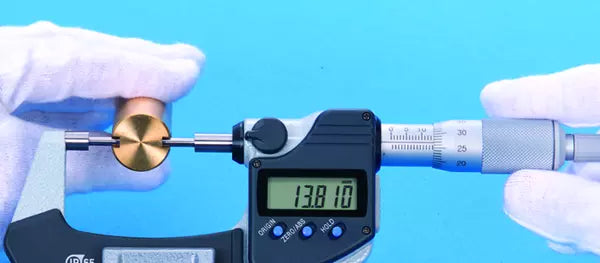

  • Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
  • Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
Features
Digital/Analog:
Digital
Delivered:

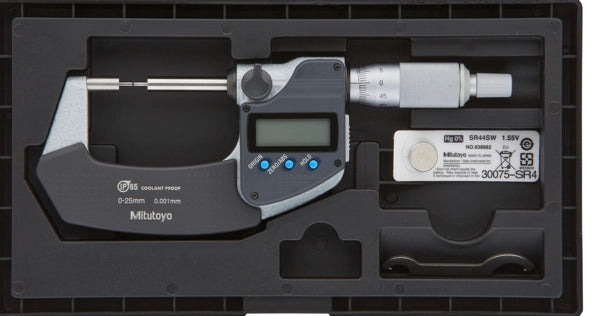

Including box, spanner, 1 SR44 battery
Inch-Metric:
Metric
Range:
0 - 25 mm
Digital step:
0,001 mm
Max.
Permissible Error
J MPE:
±2 µm
Flatness:
0,3 µm
Parallelism:
2 µm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:
Type B, D=2 mm
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
330 g

No technical information is currently available.

No application information is currently available.
