Mitutoyo Digital Spline Micrometer IP65 Inch/Metric, 50-75mm/2-3", 2mm Measuring Face 331-363-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Spline Micrometer IP65 Inch/Metric, 50-75mm/2-3", 2mm Measuring Face 331-363-30

Name: Mitutoyo Digital Spline Micrometer IP65 Inch/Metric, 50-75mm/2-3", 2mm Measuring Face 331-363-30
Brand: Mitutoyo
SKU: 331-363-30
Price: 503.3 GBP
Availability: InStock

MitutoyoSKU: 331-363-30

All prices exclude VAT, which will be added at checkout.

Price:

£503.30 £719.00

Quantity:

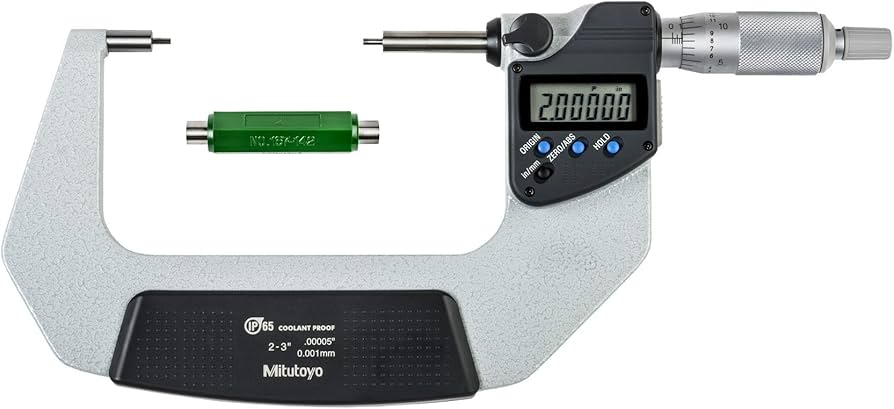

Mitutoyo; Digital Spline Micrometer

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:

Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	2 - 3 "
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0001"
Flatness:	0,000012"
Parallelism:	0,00008"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:	Type B, D=2 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Delivered:	Including box, setting standard (from 25 mm upward), key, 1 battery
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	625 g

Product Information
Part Number	331-363-30
Measuring Ranges	50-75mm/2-3"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP65
Measuring Force	5-10N
Type	Spline
Constant Force Device	Ratchet Stop
Flatness	0.0003mm/ 0.000012"
Parallelism	.003mm/.00012"
Manufacturer	Mitutoyo
