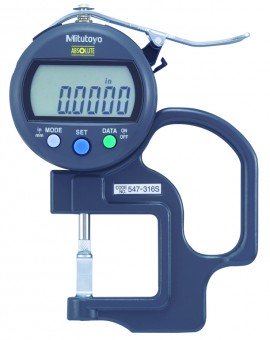

Digital Thickness Gauge, Blade Type Inch/Metric, 0-0,4", 0,0005" 547-316
Roll over image to zoom in Click on image to zoom
Digital Thickness Gauge, Blade Type Inch/Metric, 0-0,4", 0,0005" 547-316

Digital Thickness Gauge, Blade Type Inch/Metric, 0-0,4", 0,0005" 547-316

MitutoyoSKU: 547-316
List price: £474.00 Offer price: £225.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.
  • Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
Specification
Digital/Analog:
Digital
Delivered:
In a box with CR2023 battery, battery lid opener, spindle lifting lever 21AZB149
Range:
0 - 0,4 "
Type:
Blade steel contact point
Digital step:
0,0005"/0,01 mm
Accuracy:
±20 µm
Parallelism:
0,0005"/ 0,01 mm
Max. measuring depth:
30 mm
Measuring force:
? 1.5 N
Display:
LCD, character height 11 mm
Alarm:
Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:
1 battery CR2032 (3V)
Battery life:
Continuous use: approx. 2700h
DATA/HOLD:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
ABS / INC (INC ZERO):
Yes
Calculation function (with formula):
Yes
Counting direction switchable:
Yes
Digimatic S1 Bidirectional interface:
Yes
Analog bar resolution selection:
Yes
Auto Power OFF setting:
Yes
Analog bar resolution switchable:
Yes
Customizing keys:
Yes
Inch/Metric switchable:
Yes
Calibration warning function:
Yes
Digital step switchable:
No
Digital Scale:
Electrostatic capacitance type absolute linear encoder
Mass:
260 g
