Name: Digital Thickness Gauge, High Accuracy 0-12mm, 0,0005mm 547-401A
Brand: Mitutoyo
SKU: 547-401A
Price: 561.9 GBP
Availability: InStock

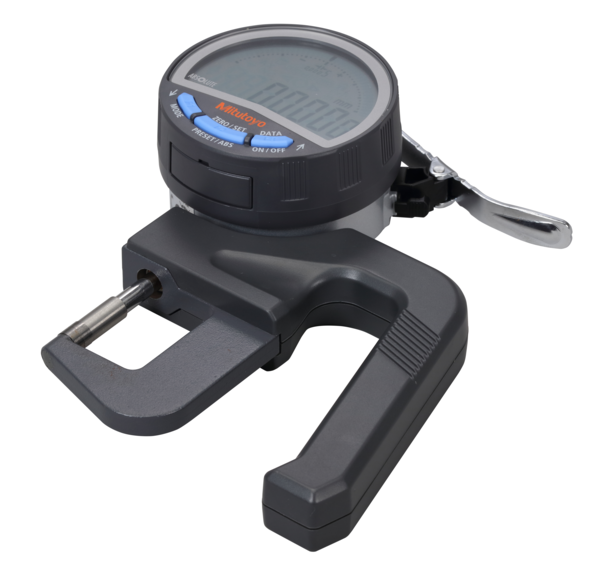

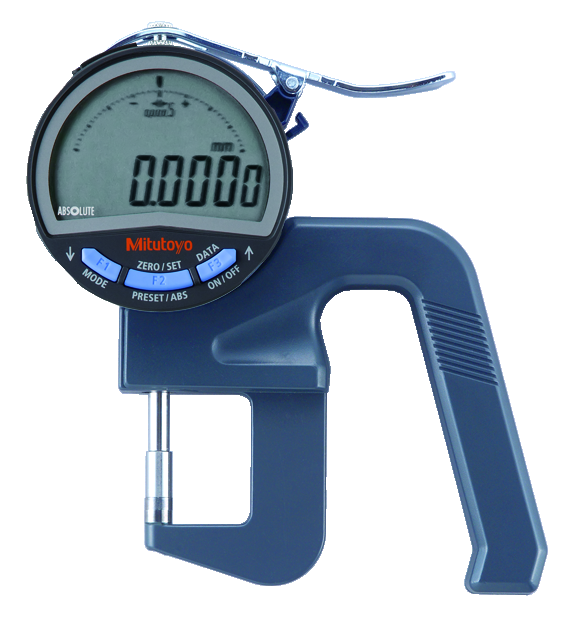

Digital Thickness Gauge, High Accuracy 0-12mm, 0,0005mm 547-401A

Roll over image to zoom in Click on image to zoom

Photo 1 of 6 More photos — use the arrows

Overview Technical Information Applications Videos & Documents

This ABSOLUTE Digimatic Thickness Gauge with 1 µm digital step enables you to measure film, paper, etc., with flat contact points.

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.

Specification

Digital/Analog:	Digital
Inch-Metric:	Metric
Functions:	With Indicator ID-C No. 543.0-700.0BS
Delivered:	In a box with CR2023 battery, battery lid opener, spindle lifting lever 21AZB149
Range:	0 - 12 mm
Type:	D= 6.3 mm carbide tipped
Digital step:	0.0005 mm/ 0.001 mm/ 0.1 mm
Accuracy:	±3 µm
Parallelism:	3 µm
Protection:	IP42
Indicator No.:	543-700BS
Max. measuring depth:	21 mm
Measuring force:	? 3,5 N
Display:	LCD, character height 11 mm
Alarm:	Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:	1 battery CR2032 (3V)
Battery life:	Continuous use: approx. 2700h
Remarks:	Electrostatic capacitance type absolute linear encoder
DATA/HOLD:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
ABS / INC (INC ZERO):	Yes
Calculation function (with formula):	Yes
Counting direction switchable:	Yes
Digimatic S1 Bidirectional interface:	Yes
Analog bar resolution selection:	Yes
Auto Power OFF setting:	Yes
Analog bar resolution switchable:	Yes
Customizing keys:	Yes
Inch/Metric switchable:	Yes
Calibration warning function:	Yes
Digital step switchable:	Yes
Mass:	275 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Digital Thickness Gauge, High Accuracy 0-12mm, 0,0005mm 547-401A Click to open the PDF document

Product Document 2 Digital Thickness Gauge, High Accuracy 0-12mm, 0,0005mm 547-401A Click to open the PDF document
