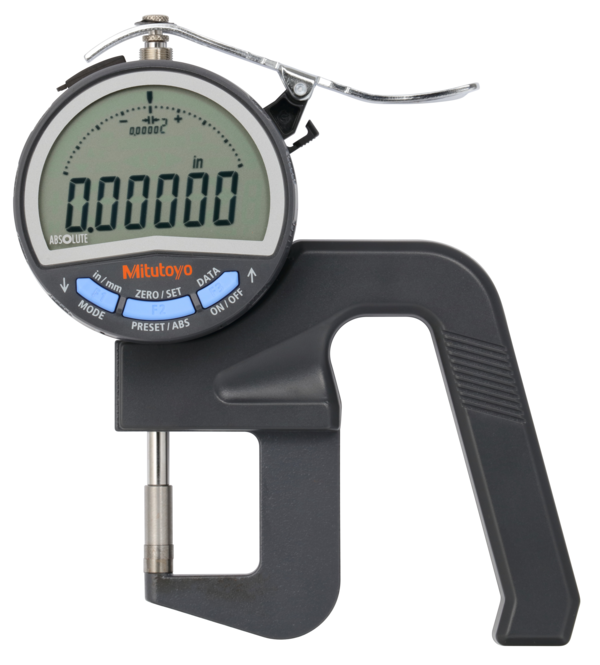

MitutoyoSKU: 547-400A
List price: £761.00 Offer price: £556.00 Excluding VAT

Mitutoyo; Digital Thickness Gauge

escriptionThis ABSOLUTE Digimatic Thickness Gauge with 1 µm digital step enables you to measure film, paper, etc., with flat contact points.
  • Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.

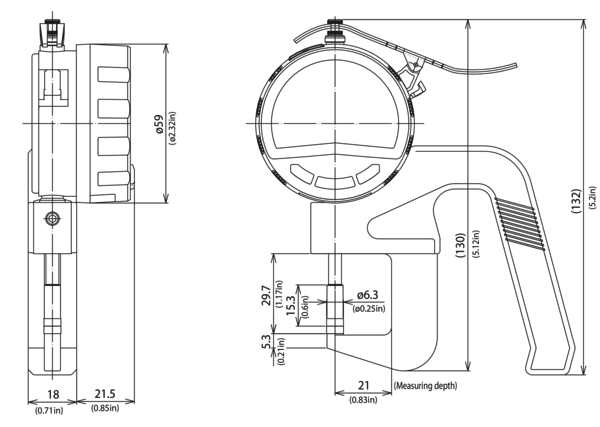

Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Functions:
With Indicator ID-C No.543.0-701.0BS
Delivered:
In a box with CR2023 battery, battery lid opener, spindle lifting lever 21AZB149
Range:
0 - 0,47 "
Type:
D= 6.3 mm carbide tipped
Digital step:
0,00002"/0,0005 mm
Accuracy:
±3 µm
Parallelism:
0,0001"/ 0,003 mm
Protection:
IP42
Indicator No.:
543-701-10BS
Max. measuring depth:
21 mm
Measuring force:
? 3,5 N
Display:
LCD, character height 11 mm
Alarm:
Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:
1 battery CR2032 (3V)
Battery life:
Continuous use: approx. 2700h
DATA/HOLD:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
ABS / INC (INC ZERO):
Yes
Calculation function (with formula):
Yes
Counting direction switchable:
Yes
Digimatic S1 Bidirectional interface:
Yes
Analog bar resolution selection:
Yes
Auto Power OFF setting:
Yes
Analog bar resolution switchable:
Yes
Customizing keys:
Yes
Inch/Metric switchable:
Yes
Calibration warning function:
Yes
Digital step switchable:
No
Digital Scale:
Electrostatic capacitance type absolute linear encoder
Mass:
275 g

No technical information is currently available.

No application information is currently available.
