Mitutoyo Digital Tube Micrometer. Spherical Anvil/Spindle Inch/Metric, 50-75mm/2-3", IP65 395-373-30

MitutoyoSKU: 395-373-30

Price:
Sale price£440.00 Regular price£603.00



Mitutoyo; Digital Tube Micrometer

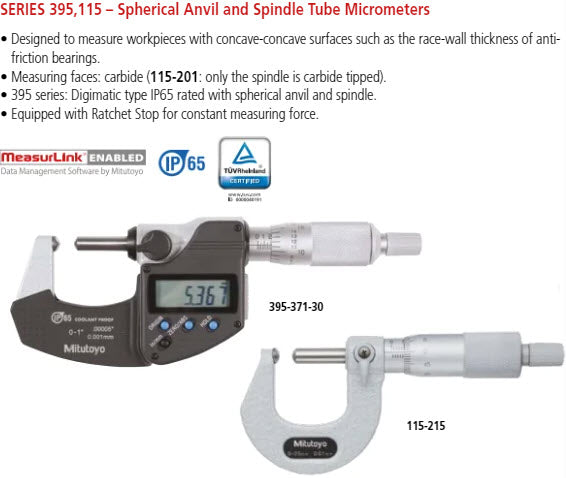

This Digimatic Tube Micrometer allows you to measure curved
surfaces such as the wall thickness of tubes, bearings and rings.
Digital/Analog:
Digital
Delivered:
Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
2 - 3 "/50-75mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,0001"/.0025mm
Flatness:
0,000012"/.003mm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Anvil / Spindle:
Type B, spherical anvil and spindle SR=4 mm
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
