Mitutoyo Digital Tube Micrometer, Spherical Anvil Inch/Metric, 75-100mm/3-4", IP65 395-354-30

MitutoyoSKU: 395-354-30
List price: £581.00 Offer price: £424.00 Excluding VAT

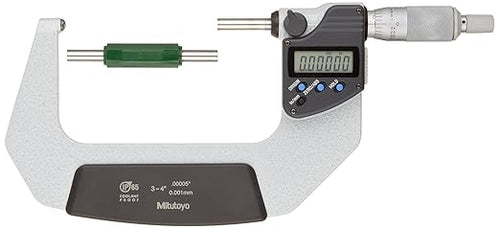

Mitutoyo; Digital Tube Micrometer

This Digimatic Tube Micrometer allows you to measure curved
surfaces such as the wall thickness of tubes, bearings and rings.
Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
3 - 4 "/75-100mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,00015"/.004mm
Flatness:
0,000012"/.003mm
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish
Anvil / Spindle:
Type A, spherical anvil SR=4 mm/flat spindle
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Tube Micrometer, Spherical Anvil Inch/Metric, 75-100mm/3-4", IP65 395-354-30 Click to open the PDF document
