Specification
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric/Inch
|
| Delivered: |
Including 2 batteries LR3, certificate of inspection
|
| Range: |
0 - 20 mm
|
| Digital step: |
0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05 mm
|
| Protection: |
IP67
|
| Measuring force: |
1,1-1,6 N
|
| Mass: |
430 g
|
| Power supply: |
2 batteries LR3 (AAA)
|
| ABS/INC switchable: |
Yes
|
| Auto Power OFF after 1/5/10 min. non use: |
YES
|
| Analog bar resolution switchable: |
Yes
|
| OFFSET: |
Yes
|
| Type: |
Fig. 2
|

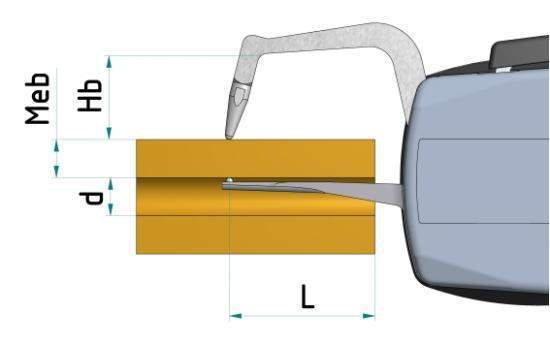

| Hb: |
24.7 mm
|
| Hf: |
2.5 mm
|
| mm/inch conversion: |
Yes
|
| HOLD: |
Yes
|
| SET key: |
Yes
|
| DATA key: |
Yes
|
| DATA-Logger (100 measured values): |
Yes
|
| Max. reading: |
Yes
|
| Min. reading: |
Yes
|
| Tolerance LED (green/red): |
Yes
|
| Tolerance judgement: |
Yes
|
