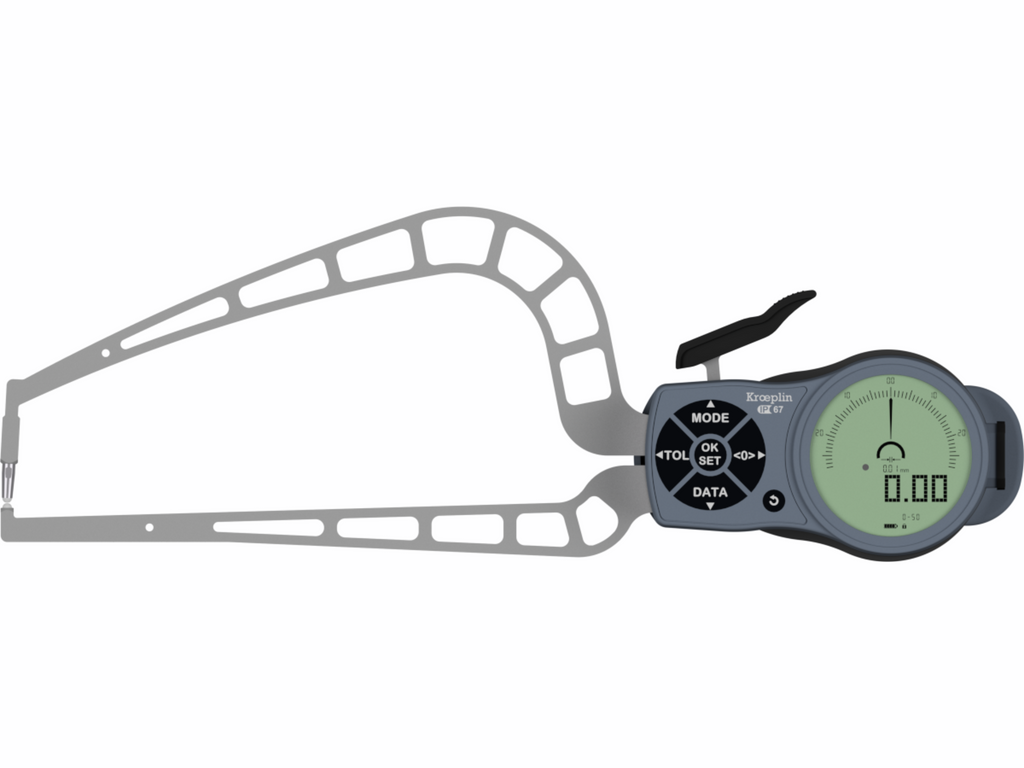

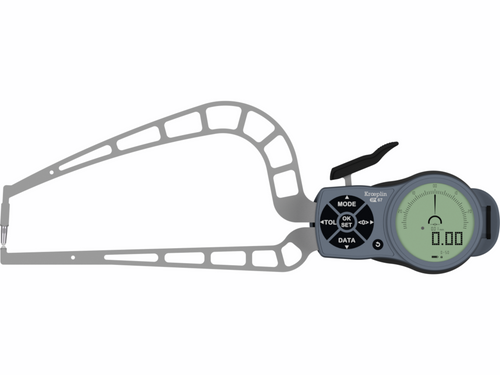

Kroeplin Digital Tube Wall Caliper Gauge 0-50mm, 0.001mm K4R50S( Mitutoyo Equivalent 209-958)

Roll over image to zoom in Click on image to zoom

Kroeplin Digital Tube Wall Caliper Gauge 0-50mm, 0.001mm K4R50S( Mitutoyo Equivalent 209-958)

Name: Kroeplin Digital Tube Wall Caliper Gauge 0-50mm, 0.001mm K4R50S( Mitutoyo Equivalent 209-958)
Brand: Kroeplin
SKU: K4R50S
Price: 465.0 GBP
Availability: InStock

KroeplinSKU: K4R50S

All prices exclude VAT, which will be added at checkout.

Price:

£465.00 £596.00

Quantity:

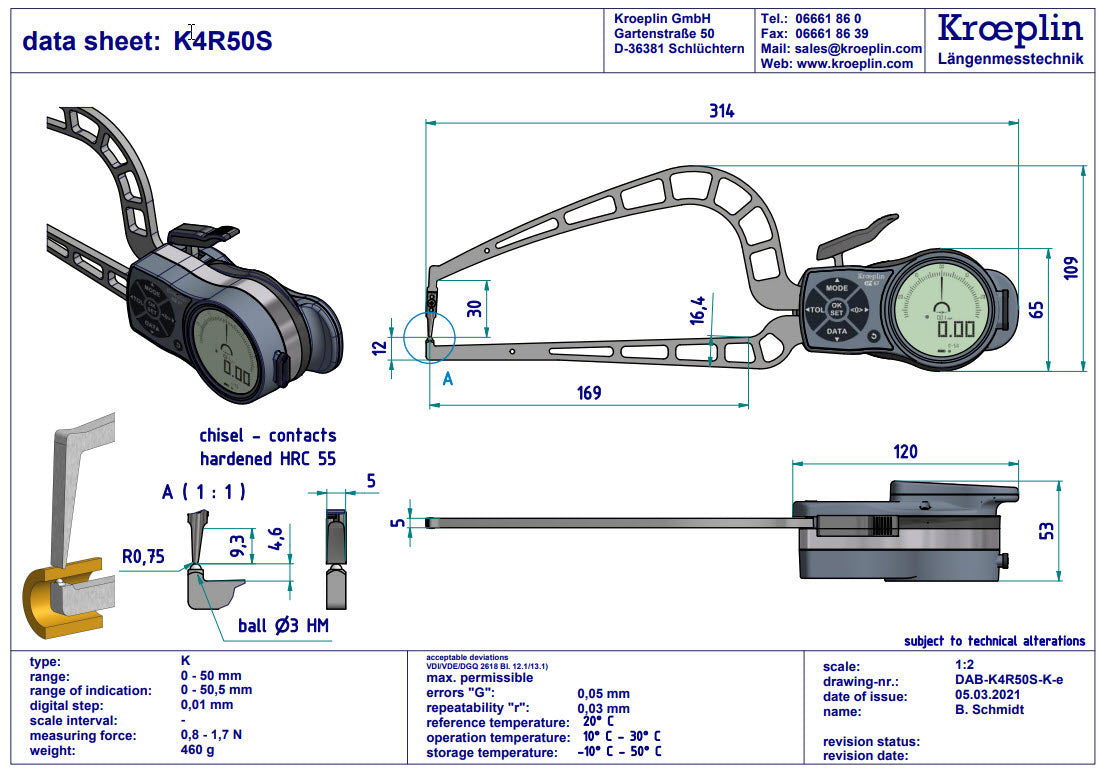

Range: 0-50mm (0-1.97″)
Resolution: 0.001mm (0.00005″)
Accuracy: ± 0.05mm (0.002″)
Repeatability: 0.03mm (0.001″)
Measuring depth: 169mm
Type of measuring contact moveable: Chisel R 0.75mm
Measuring contact moveable: 30mm
Type of measuring contact fixed: HM-Ball Ø 3mm
Measuring contact fixed: 4.3mm
Min measuring force: 0.8N
Max measuring force: 1.7N
IP67 protection: Water, coolant & dust resistant
Application: Measurement of tube wall thickness

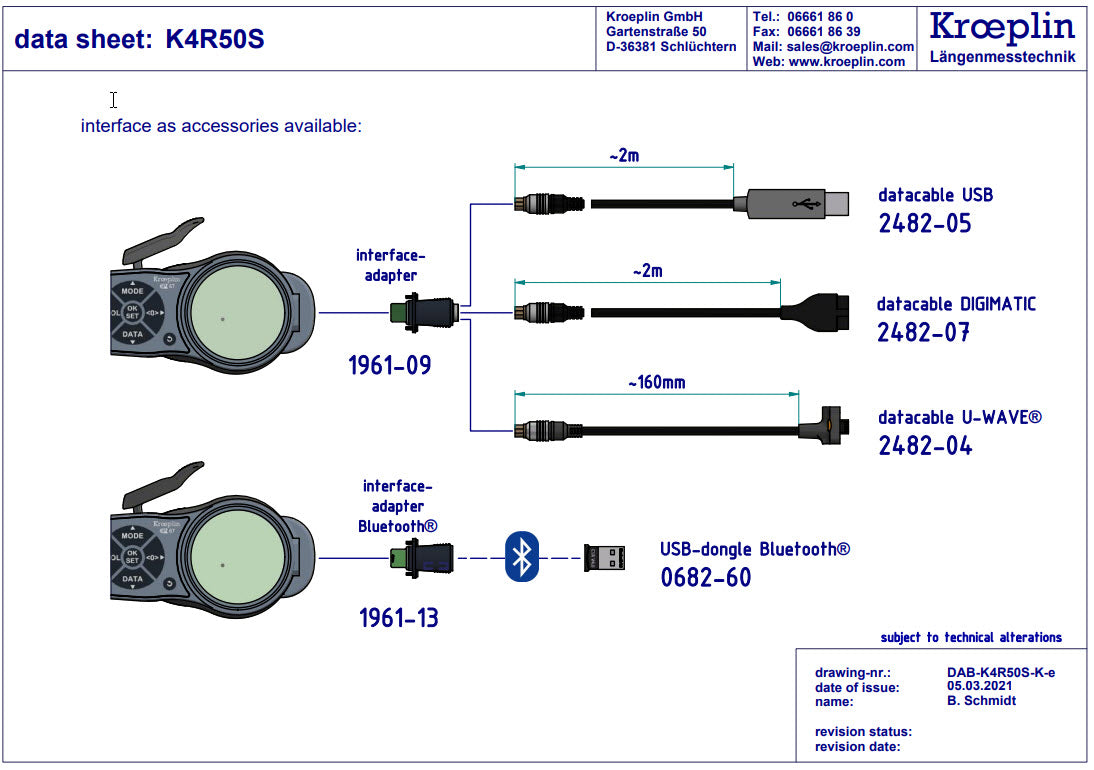

Data output
Inch/metric
MPN: K4R50S
Brand: Kroeplin

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	K4R50S
Measuring Range	0-50mm
Resolution	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
Accuracy	.06mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP67
Measuring Force	0-8-1.7N
Type	Tube Wall
Repeatability	.03mm
Application	Measurement of tube wall thickness
Measuring Contacts	Carbide Ball 3mm diameter/Carbide Bevel radius 0.75mm
Measurement L	169mm
Measurement B	4.3mm
Measurement A	30mm
Calibration Code	CAL22 B3
Resolution/Capacity	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
