Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-303 Range 200-1000mm/8-40"

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-303 Range 200-1000mm/8-40"

Name: Mitutoyo Digital Tubular Inside Micrometer (Pipe) 339-303 Range 200-1000mm/8-40"
Brand: Mitutoyo
SKU: 339-303
Price: 1073.0 GBP
Availability: InStock

MitutoyoSKU: 339-303

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£1,073.00 £1,470.00

Quantity:

All prices exclude VAT, which will be added at checkout.

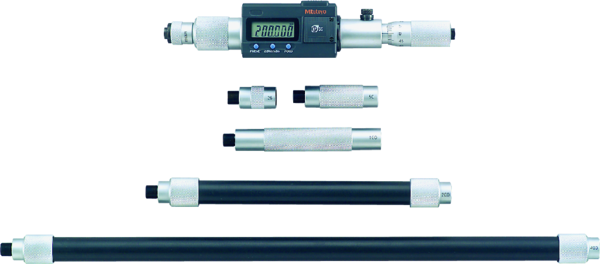

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces.
Digimatic type, with data output.
It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Range:	8 - 40 "
Measuring span:	1"
Digital step:	0,0001"/0,001 mm
Limit of error:	±(0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Display:	LCD, character height 7.5 mm
Measuring spindle:	Spindle pitch 0,635 mm
Measuring face:	Carbide
Extension:	ø12,5 mm

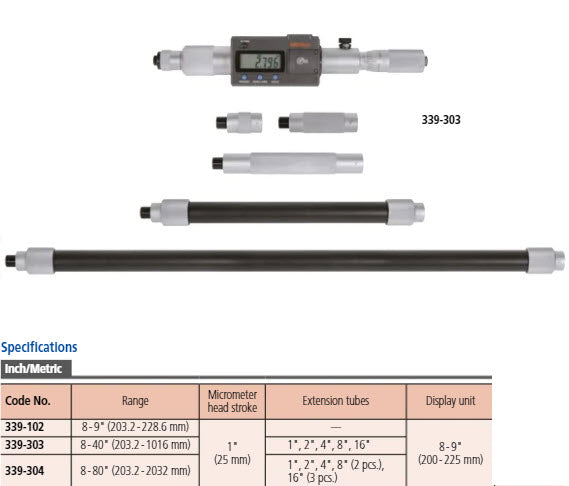

Extension rods:	6 (1, 2, 4 (2 pcs.), 8, 12")
Power supply:	1 battery SR-44
Delivered:	Including box, key, 1 battery, extensions, micrometer head
DATA/HOLD:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
2 x PRESET:	Yes
Delivered:	Including box, spanner, 1 SR44 battery, 6 extension rods, micrometer head (main unit) 137-102
Spindle feed error:	0.00015 inch
Data output:	Yes
Mass:	1040 g

Product Information
Part Number	339-303
Measuring Ranges	200-1000mm
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
IP Rating	IP65
Type	Stick Micrometer
Micrometer Head Stroke	25mm/1"
Product Description	Digimatic Long Range Extension Tube Inside Micrometer
Manufacturer	Mitutoyo
