MitutoyoSKU: 123-128
List price: £318.00 Offer price: £232.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

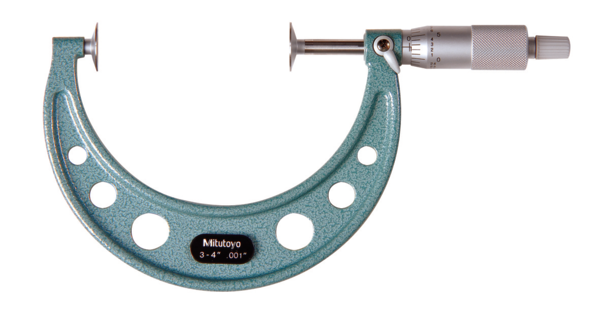

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Inch
Range:
3 - 4 "
Graduation:
0,001"
Max.
Permissible Error
J MPE:
±0,0003"
Flatness:
0,00004"
Parallelism:
0,00024"
Measuring face:
Carbide-tipped (123-113, -114, -115, -116) or hardened steel spindle and anvil
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Measurable module:
0.5 - 6 mm
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
250 g
