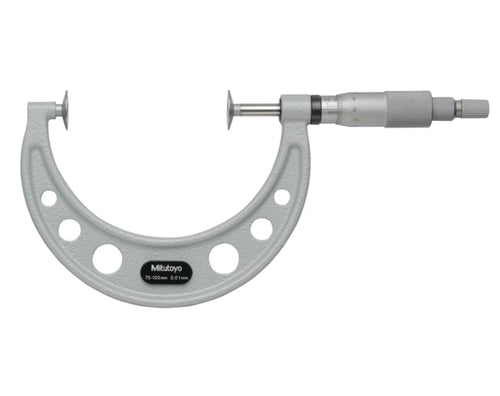

Mitutoyo Disc Micrometer, Hardened Steel Disks 75-100mm, Disk=20mm 169-207-10 Non Rotating Spindle

Roll over image to zoom in Click on image to zoom

Mitutoyo Disc Micrometer, Hardened Steel Disks 75-100mm, Disk=20mm 169-207-10 Non Rotating Spindle

Name: Mitutoyo Disc Micrometer, Hardened Steel Disks 75-100mm, Disk=20mm 169-207-10 Non Rotating Spindle
Brand: Mitutoyo
SKU: 169-205-10
Price: 237.0 GBP
Availability: InStock

MitutoyoSKU: 169-205-10

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£237.00 £325.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This Disc Micrometer has a non-rotating spindle and allows you measure a range of different
materials.
It offers you the following benefits:

It features a non-rotating spindle and disc-shaped measuring surfaces.
Measuring the root tangent length of spur and helical gears
Measurable range of gear pitch: 0,5-6 module
It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.

Product Information
Part Number	169-205-10
Measuring Ranges	75-100mm
Graduation	.01mm
Unit of Measurement	Metric
Measuring Force	8+/-0.8N
Type	Disc
Constant Force Device	Ratchet Stop
Flatness	1µm/.00004"
Parallelism	.004mm/.00016"
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	75 - 100 mm
Max. Permissible Error J MPE:	±6 µm
Flatness:	1 µm
Parallelism:	6 µm
Graduation:	0.01mm
Measuring face:	Hardened steel, micro-lap finish
Measuring spindle:	ø6,35 mm, non-rotating, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Mass:	400 g
