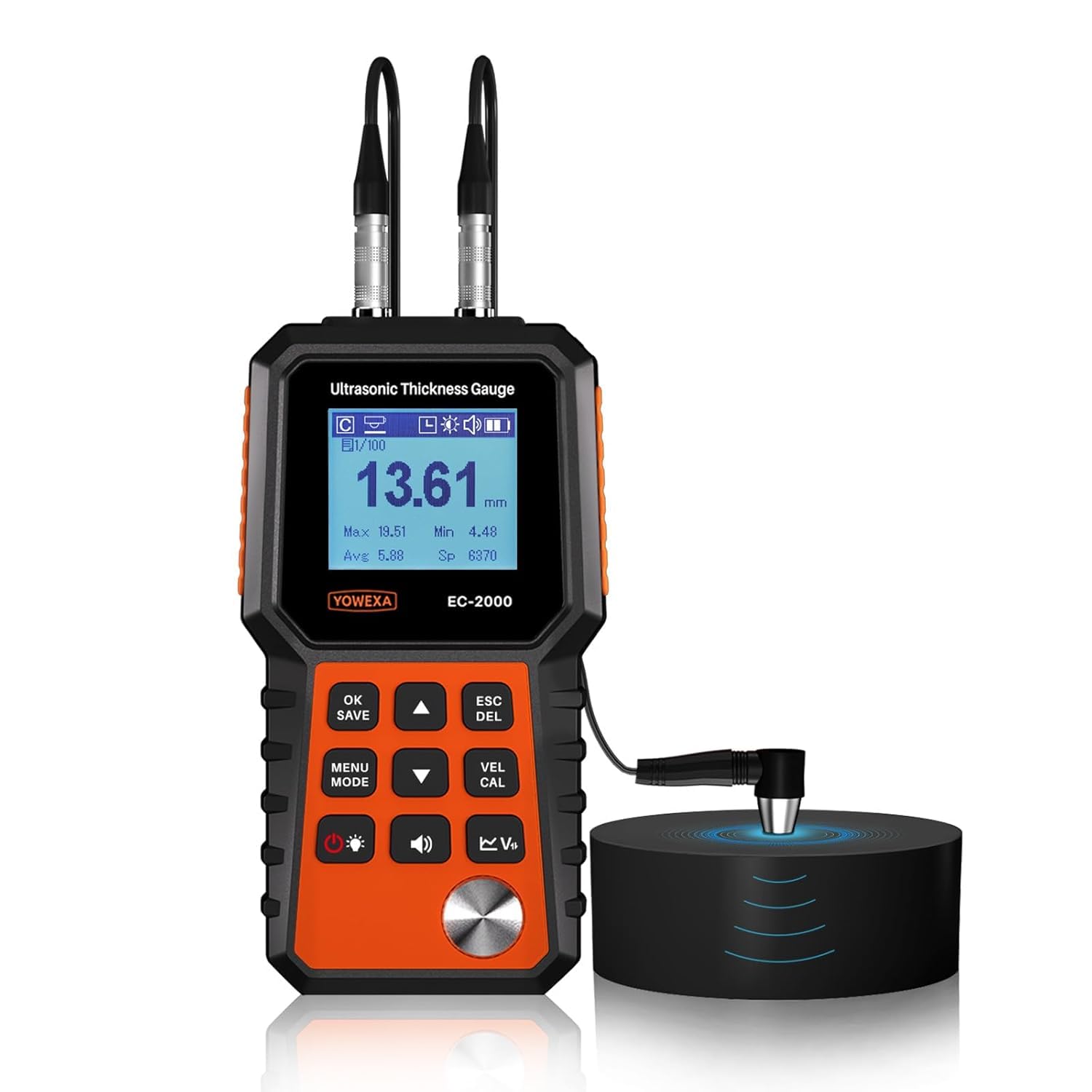

EC-2000-L External Probe PU5-10 ULTRASONIC THICKNESS GAUGE Measuring range: 1-300mm resolution 0.1mm

Description

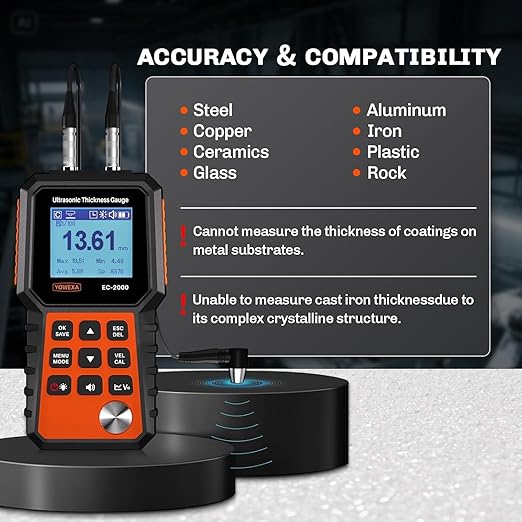

The YOWEXA EC-2000 Ultrasonic Thickness Gauge provides precise non destructive thickness testing for a wide range of industrial applications. It measures steel aluminum copper and other metals as well as non-metals including plastic glass ceramics and PVC. Using ultrasonic pulse reflection technology it delivers a measurement range of 0.04 to 15.7 inches (1 to 400 mm) with reliable accuracy for quality control maintenance and engineering tasks. It features adjustable sound velocity from 1000 to 9999 m/s and supports single or continuous modes with a fast response and a coupling status indicator for stable readings even on rough or curved surfaces. The backlit LCD display ensures easy reading in any lighting. The instrument stores up to 100 readings with min and max statistics and allows quick switching between mm and inch units. Its rugged ABS housing with IP40 protection and compact ergonomic design make it an excellent tool for petrochemical shipbuilding aerospace and automotive industries. Note This device is not suitable for cast iron or porous materials due to ultrasonic wave scattering characteristics.

1. Pocket size, easy to operate
2. Auto Probe Zero Calibration
3. Auto Probe identify
4. Measuring range:1-400mm
5. Suitable for various materials such as steel, stainless steel, aluminum, glass, polystyrene, polyethylene
6. Auto/Manual gain adjustable
7. USB output
8. Standard 5.0MHz probe included, optional probe: 75MHz, 2.0MHz, 5.0MHz high temperature, 10MHz
