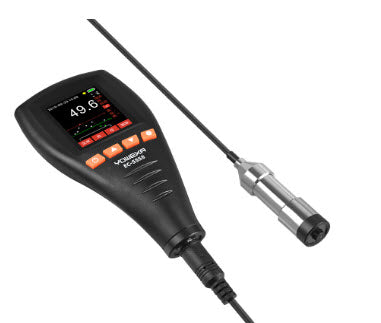

- EC-555SE is with external probe version, the gauge can be equipped with a variety of separated probes for easy replacement. EC-555SE is better suited to work in narrower spaces or on assembly lines compared with EC-555S.
- EC-555S has upgraded the probe based on EC-555, and its accuracy is ±(2%+1?m). Compared with EC-555, EC-555S has stronger anti-interference ability and can work in more complicated electromagnetic field environment.

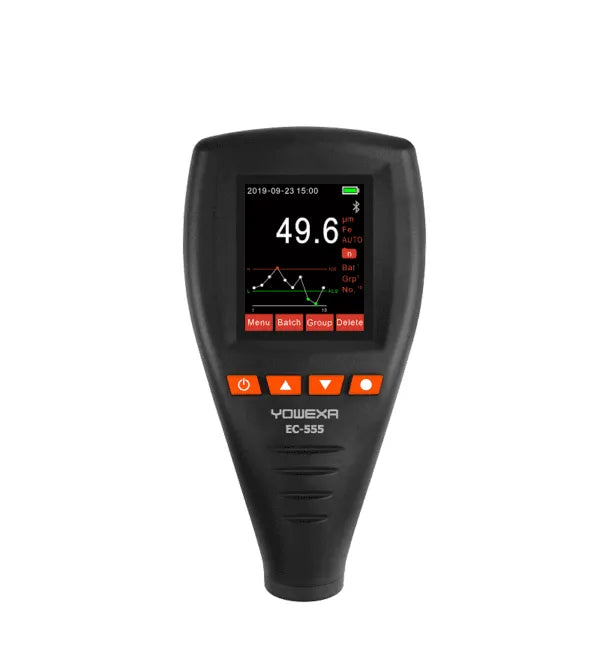

- EC-555 comes with the ruby probe.
- The EC-555 series has a 2-inch color screen.
- Its resolution is up to 0.1µm.
- The device’s measurement range is between 0-2000µm.
- It records the coating thickness and can send it to the computer.
- Three batteries, an F/N probe, a USB cable, and five foils accompany this device.
- You can adjust the volume of the sound.
- EC-555 supports zero and multipoint calibration.
- It shuts down automatically when not in use.
- EC-555 can send its readings to the mobile app.
- It can send its reading by Bluetooth connectivity.
- The display supports auto-rotation
- The backlight is adjustable.
- It displays the data as a bar or curve chart.
- It is a portable and durable device.
- EC-555 can measure the thickness of non-conductive coatings on any metallic surface.
- It can measure the coating thickness of nonferromagnetic metal coatings on ferromagnetic metals like iron and nickel.
Specifications
|
Power supply
|
3pcs 1.5V AAA alkaline batteries
|
|
Probe type
|
Internal probe
|
|
Measuring principle
|
Fe: Magnetic induction; NFe: Eddy currents
|
|
Measuring range
|
0~2000?m
|
|
Accuracy
|
±(3%+1?m)
|
|
Resolution
|
0.1?m(0~100?m); 1?m(>100?m)
|
|
Weight / Case Material
|
About 90gm(no battery) / ABS
|
|
Size
|
133mm*68mm*30 mm
|
|
Readings memory
|
10x13x10 measurement data
|
|
Minimum measuring area
|
Diameter 15mm
|
|
Minimum thickness of substrate
|
Fe: 0.30mm/NFe: 0.05mm
|
|
Maximum measuring rate
|
2 readings / s
|
|
Standards/Certificates
|
CE, ROHS, ISO 2178, 2360, GB./T 4956-2003, 4957-2003, JJG-818-2005
|
