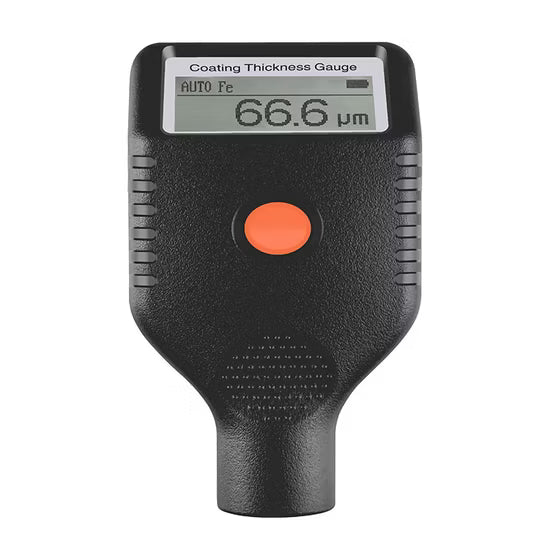

EC-600-S-P Coating thickness Gauge 0-2000µ Accuracy 3% Res .01µ, F & N External Probe

The series of EC-600 coating thickness gauges can be used to measure the thickness of non-conductive coatings on non-ferrous metals and non-magnetic insulating coatings on ferromagnetic metals (such as iron, nickel and cobalt, etc.). They are mainly used for non-destructive thickness measurement for the coatings of paint or galvanized layers on iron and stainless steel, paint or plastic film on aluminum and copper, etc.

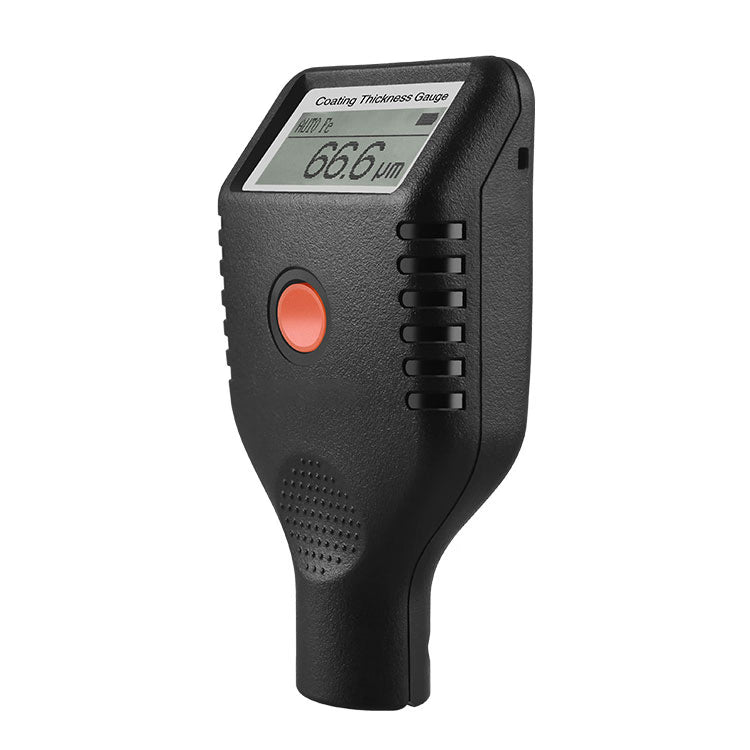

EC-600 is with internal probe combined with magnetic induction and eddy currents principle, which is with measuring range of 0~2000μm and accuracy of ±(3%+1μm), and the highest resolution is up to 0.1μm.

EC-600 is only with one button, and it is easy to operate. When you start measurement, place the probe vertically and rapidly on a suitable surface, then the device will automatically distinguish the substrate material and measure the thickness of coatings.

EC-600X optimizes the principle on the basis of EC-600, and uses OLED display to enhance the low temperature working performance. Under the condition of using low temperature resistant battery, the extreme working temperature of EC-600X can reach -50℃.

On the basic of EC-600, EC-600S is upgraded its probe and accuracy, and added new functions. The EC-600S is with stronger anti-interference ability compared with EC-600, and it can work in the high electromagnetic fields environment. The accuracy of EC-600S is ±(2%+1μm), and the measurement result can be sent to the mobile APP in real-time via bluetooth.

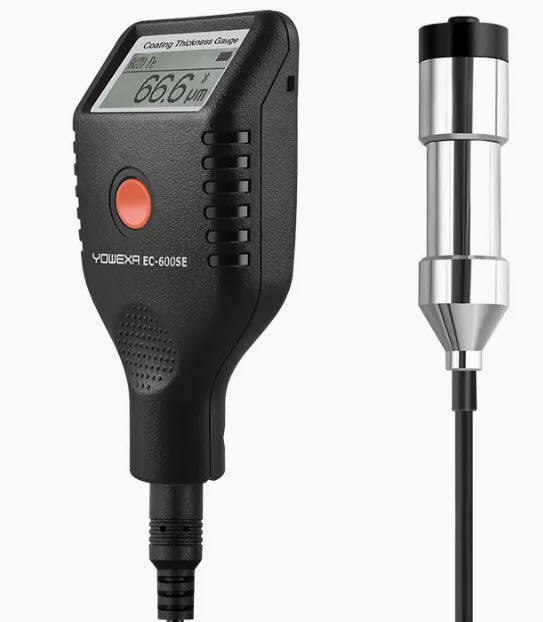

EC-600SE is with external probe version, the gauge can be equipped with a variety of separated probes for easy replacement. EC-600SE is better suited to work in narrower spaces or on assembly lines compared with EC-600S.



【FEATURES】



·   ruby probe

·   With Bluetooth and mobile APP (EC-600S/SE)

·   Response time up to 0.3 seconds

·   Can work in low temperature as low as -40℃ (EC-600X)

·   Resolution up to 0.1μm

·   Accuracy ±(2%+1μm) (EC-600S/SE)

·   Measuring range 0~2000μm

·   Display the maximum, minimum,average and numbers of readings

·   Can recall 10 measurements

·   One button

·   Zero calibration supported

·   External probe optional (EC-600SE)

·   Dot matrix display

·   Automatic shut-down
