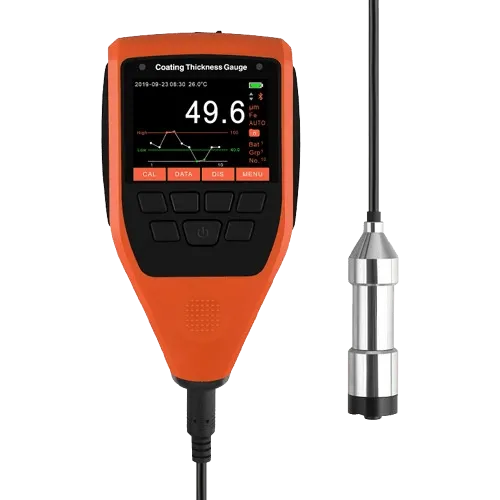

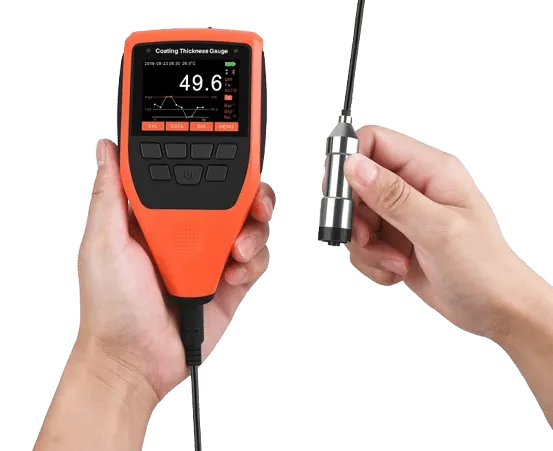

- EC-777E comes with a separate probe.
- It allows you to perform statistical analysis of data.
- The measuring range of EC-777E is 0 to 2000 micrometers.
- It facilitates both zero and multipoint calibration.
- EC-777E comes with a 12-months warranty.
- It displays four units of measuring values.
- EC-777E is known as a highly accurate device for measuring coating thickness.
- It comes with a volume-adjusting knob.
- The device has a 2.4-inch color screen.
- EC-777E comes with Bluetooth and app support.
- EC-777E measures the coating thickness of the non-conductive coating on a non-magnetic surface.
- It measures the non-magnetic coating on a ferrous substrate.
Specifications
|
Probe type
|
Separated probe
|
|
Measuring Principle
|
Fe: Magnetic induction; NFe: Eddy currents
|
|
Measuring Range
|
0~2000?m
|
|
Accuracy
|
±(2%+1?m)
|
|
Resolution
|
0.1?m(0~100?m); 1?m(>100?m)
|
|
Display
|
2.4 inch color screen
|
|
Unit
|
?m, mm, mils, inch
|
|
Temperature Range (Operation/Storage)
|
(-10 to 50 °C) / (-20 to +60 °C)
|
|
Chart
|
Curve, bar chart or trend chart
|
|
Readings Memory
|
10x13x10 measurement data
|
|
Minimum measuring area
|
Diameter 15mm
|
|
Probe trigger mode
|
Mechanical trigger, trigger force: 0.4-0.8N
|
|
Minimum thickness of Substrate
|
Fe: 0.20mm/NFe: 0.03mm
|
|
Maximum measuring rate
|
2 readings
|
|
Power Supply
|
2pcs 1.5V AA alkaline batteries, 2pcs 1.2V AA rechargeable batteries
|
|
Size
|
Housing: 146X76X32mm; Wire: ?3.5X1000mm; Probe: ?17X67mm
|
|
Case
|
Housing: ABS; Probe: Stainless steel
|
|
Weight
|
Housing: about 137g(no batteries); Probe: about 63g
|
|
Standards/Certificates
|
CE, ROHS, ISO 2178, 2360, GB./T 4956-2003, 4957-2003, JJG-818-2005
|
