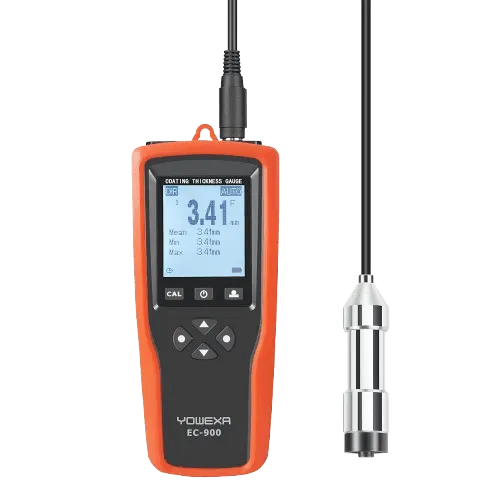

EC-900 series exhibits dual technology. It can measure the non-magnetic coatings on steel and the insulating coatings on non-ferrous metals. EC-900 comes with a USB cable. Once the cable connects to the measuring object, it sends the recorded data to a computer through a USB cable. You must operate this device within -10~50°C.
|
Measuring principle
|
Magnetic induction (F); Eddy current (N)
|
|
Measuring range
|
Decided by probe
|
|
Accuracy
|
±(2%+1μm)
|
|
Resolution
|
0.1μm(0~99.9μm); 1μm(≥100μm)
|
|
Readings memory
|
2000 readings
|
|
Unit
|
μm, mm, mils
|
|
Power supply
|
3pcs 1.5V AAA batteries
|
|
Temperature range (Operation/Storage)
|
(-10 to 50 °C) / (-20 to +60 °C)
|
|
Standards/Certificates
|
CE, ROHS, ISO 2178, 2360, GB./T 4956-2003, 4957-2003
|
|
Size/Weight/Case material
|
174mmX73mmX40mm/195gm/ABS
|
