- Very small dimensions
- Impact device integrated
- Identify direction automatically
- Full USB communication with PC
- Wireless printing
- Intelligent sleep mode
Technical specification
|
||
| Impact device type: | D - integrated | |
| Hardness scales: | HLD, HB, HRC, HRB, HV, HS | |
| Measuring accuracy: | +/- 4HLD (0,5 % at 800 HLD) | |
| Memory: | 500 m??ení | |
| Measuring direction setting: | automatic | |
| LCD display: | 128 x 64 dots with backlight | |
| Working time: | app. 20 hours (without backlight) | |
| Working temperature: | -10°C - +60°C | |
| Humidity: | 20 % - 85 % | |
| Dimensions: | 147 x 35 x 22 mm | |
| Weight: | 100 g | |

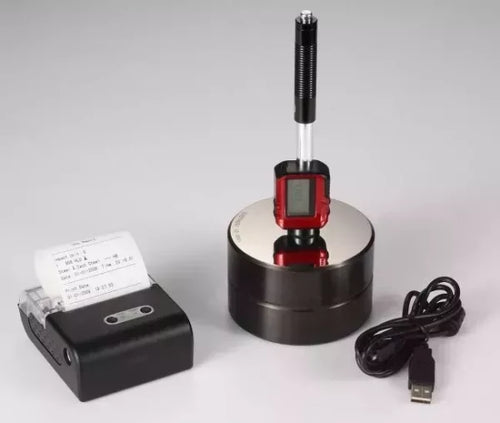

Rozsah dodávky
Standard accessories:
- reference hardness test block
- cleaning brush
- Bluetooth printer, data cable + software
- transportation case
- manual
