Mitutoyo External Dial Caliper Gauge , 0,005mm 209-406, 0-20mm

MitutoyoSKU: 209-406
List price: £635.00 Offer price: £464.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

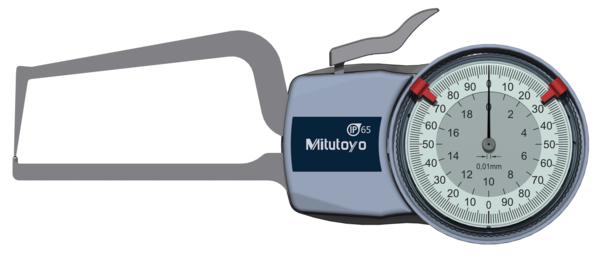

A Mitutoyo external dial caliper gauge. The caliper is spring loaded and makes point contact at constant measuring force.
Features
Inch-Metric:
Metric
Delivered:
In a paper box with certicate of inspection
Range:
0 - 20 mm
Graduation:
0.01 mm
Graduation:
0.01
Protection:
IP 65
Measuring force:
1,1-1,6 N
Mass:
200 g
Type:
Fig. 3
Hb:
24.7 mm
Hf:
2.5 mm

No technical information is currently available.

No application information is currently available.
