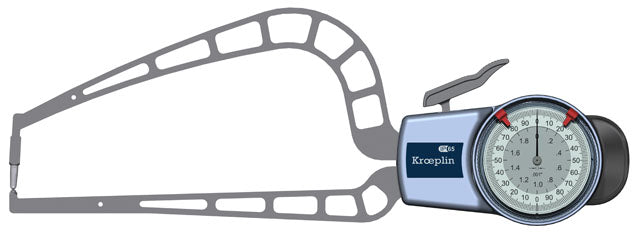

Kroeplin External Dial Caliper Gauge D9R50, 0-2" Grad .001" Wall thickness ( Mitutoyo Equivalent 209-917)

Roll over image to zoom in Click on image to zoom

Kroeplin External Dial Caliper Gauge D9R50, 0-2" Grad .001" Wall thickness ( Mitutoyo Equivalent 209-917)

Name: Kroeplin External Dial Caliper Gauge D9R50, 0-2" Grad .001" Wall thickness ( Mitutoyo Equivalent 209-917)
Brand: Kroeplin
SKU: D9R50
Price: 497.0 GBP
Availability: InStock

KroeplinSKU: D9R50

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£497.00

Quantity:

All prices exclude VAT, which will be added at checkout.

The

D9R50

External Dial Caliper Gauge has the following specifications:

Range: 0-2.00″
Graduation: .001″
Accuracy: +/- .002″

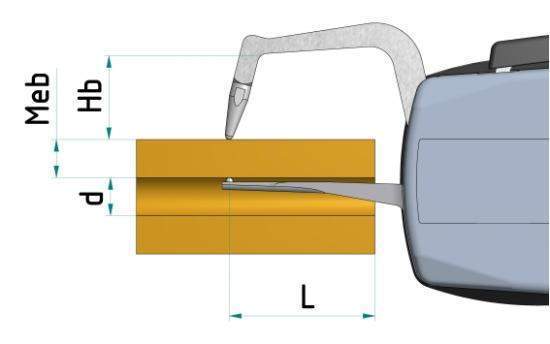

Max. Measuring Depth L: 6.53″
Length Hb: 1.2″
Length Hf: .18″
Measuring Contact Type: RK/K
Size: 3mm
Mass: 400g

Customer Support

Contact our customer support team via email or call our hotline number

Phone - 02476 644661

Secure payments

We offer multiple secure payment options

Product Information
Part Number	D9R50
Measuring Ranges	0-2"
Graduation	.001"
Accuracy	.002"
Unit of Measurement	Inch
Display Type	Analogue
IP Rating	IP54
Measuring Force	0-8-1.7N
Type	External Groove Gauge
Repeatability	.001"

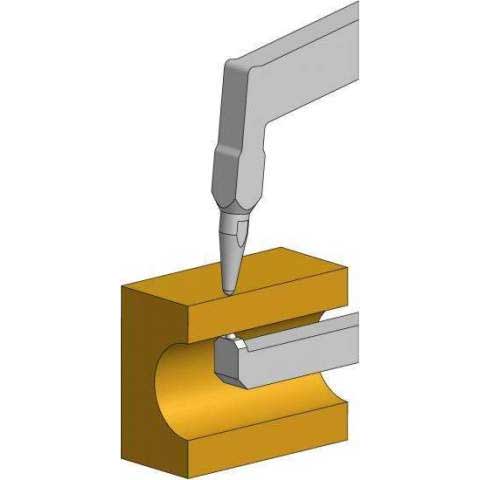

Measuring Contacts	Carbide Ball diameter .118"
Measurement L	6.653"
Measurement B	.18"
Measurement A	1.18"
Manufacturer	Kroeplin
