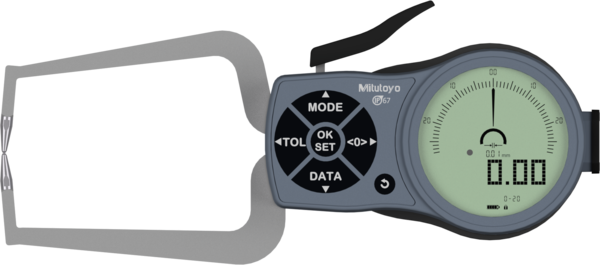

Name: Mitutoyo External Digital Caliper Gauge 209-932 Range 0-20mm
Brand: Mitutoyo
SKU: 209-932
Price: 486.0 GBP
Availability: InStock

Mitutoyo External Digital Caliper Gauge 209-932 Range 0-20mm

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

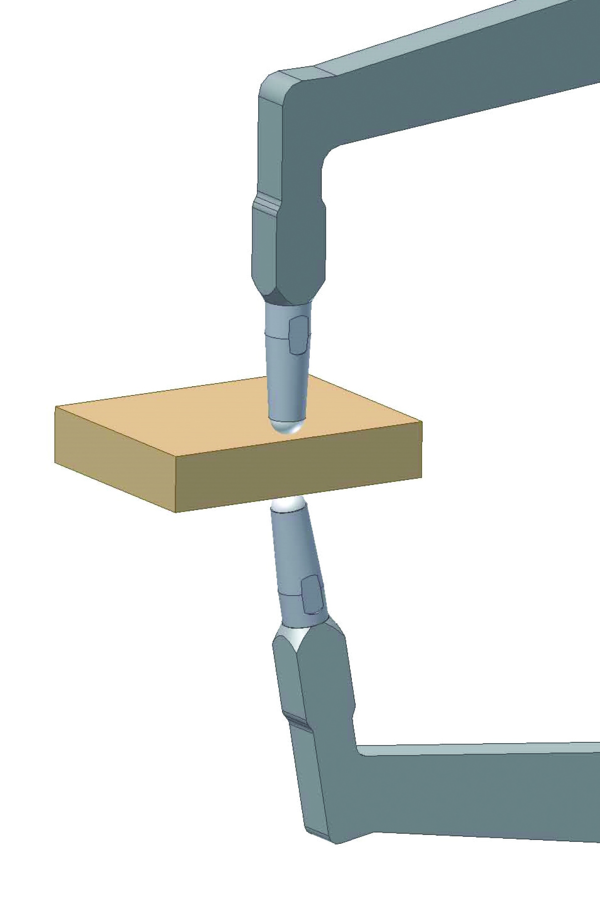

Digital Caliper Gauge enables measurements in hard-to-reach places
Excellent resistance against water and dust IP67 level

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo External Digital Caliper Gauge 209-932 Range 0-20mm Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

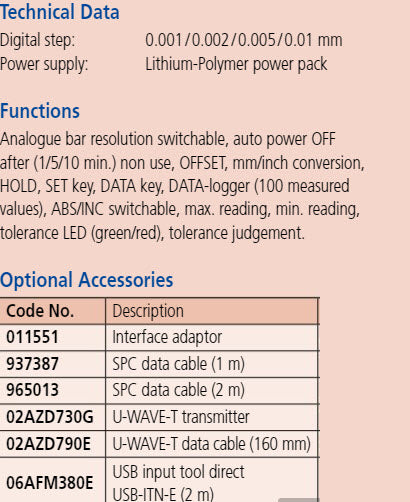

Digital/Analog:	Digital
Inch-Metric:	Metric/Inch
Delivered:	Including 2 batteries LR3, certificate of inspection
Range:	0 - 20 mm
Digital step:	0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05 mm
Protection:	IP67
Measuring force:	1,1-1,6 N
Mass:	270 g
Power supply:	2 batteries LR3 (AAA)
ABS/INC switchable:	Yes
Auto Power OFF after 1/5/10 min. non use:	YES
Analog bar resolution switchable:	Yes
OFFSET:	Yes
Type:	Fig. 1

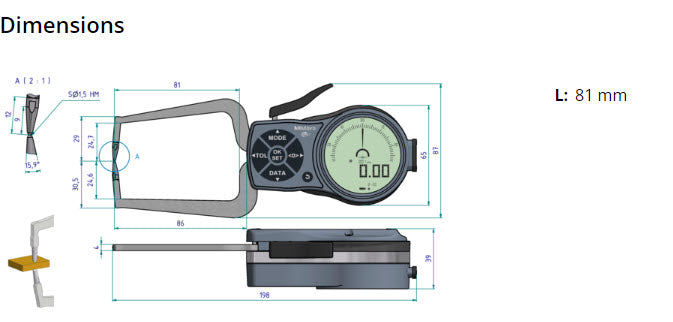

Hb:	24.7 mm
Hf:	24.6 mm
mm/inch conversion:	Yes
HOLD:	Yes
SET key:	Yes
DATA key:	Yes
DATA-Logger (100 measured values):	Yes
Max. reading:	Yes
Min. reading:	Yes
Tolerance LED (green/red):	Yes
Tolerance judgement:	Yes
