Mitutoyo External Digital Caliper Gauge 209-930, Range 0-10mm (Kroeplin Equivalent K110)

Roll over image to zoom in Click on image to zoom

Mitutoyo External Digital Caliper Gauge 209-930, Range 0-10mm (Kroeplin Equivalent K110)

Name: Mitutoyo External Digital Caliper Gauge 209-930, Range 0-10mm (Kroeplin Equivalent K110)
Brand: Mitutoyo
SKU: 209-930
Price: 448.0 GBP
Availability: InStock

MitutoyoSKU: 209-930

All prices exclude VAT, which will be added at checkout.

Price:

£448.00 £640.00

Quantity:

Range: 0-10mm (0-0.4″)
Resolution: 0.005mm (0.0001″)
Accuracy: ± 0.015mm (0.0005″)
Measuring force: 0.8-1.2N
IP67 Rated: High protection against liquid and dust ingress
Data output
Switchable counting direction
Inch-Metric
Function HOLD
Contact point: 1.5mm sphere
SET Key
DATA Key
ABS/INC switchable
Max/Min reading
Tolerance LED (green/red)
Tolerance judgement
MPN: 209-930
Brand: Mitutoyo/Kroeplin

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	209-930
Measuring Range	010mm
Resolution	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
Accuracy	.015mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP67
Measuring Force	0-8-1.2N
Type	External
Repeatability	.005mm
Application	External measurement
Measuring Contacts	Carbide Ball 1.5mm diameter

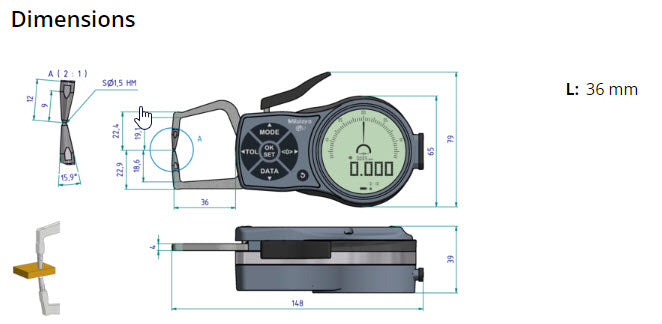

Measurement L	36mm
Measurement B	18.6mm
Measurement A	19.1mm
Resolution/Capacity	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
