Mitutoyo Internal Digital Caliper Gauge 13-43mm, 0,01mm, Carbide Ball D=1,3mm Item number: 209-944(Kroeplin Equivalent L313)
Mitutoyo Internal Digital Caliper Gauge 13-43mm, 0,01mm, Carbide Ball D=1,3mm Item number: 209-944(Kroeplin Equivalent L313)
Roll over image to zoom in Click on image to zoom
Mitutoyo Internal Digital Caliper Gauge 13-43mm, 0,01mm, Carbide Ball D=1,3mm Item number: 209-944(Kroeplin Equivalent L313)Mitutoyo Internal Digital Caliper Gauge 13-43mm, 0,01mm, Carbide Ball D=1,3mm Item number: 209-944(Kroeplin Equivalent L313)

Mitutoyo Internal Digital Caliper Gauge 13-43mm, 0,01mm, Carbide Ball D=1,3mm Item number: 209-944(Kroeplin Equivalent L313)

MitutoyoSKU: 209-944
List price: £671.00 Offer price: £490.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Round 6-Pin Type 965013
Part number: 965013  → View product
Mitutoyo Digimatic Cable, Round 6-Pin Type 937387
Part number: 937387  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable E Round 6-Pin Type 02AZD790E
Part number: 02AZD790E  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380E
Part number: 06AFM380E  → View product
Mitutoyo 011551 Interface adaptor
Part number: 011551  → View product

Description

  • Digital Caliper Gauge enables measurements in hard-to-reach places
  • Excellent resistance against water and dust IP67 level

Internal Digital Caliper Gauge

13-43mm, 0,01mm, Carbide Ball D=1,3mm

Item number: 209-944



    Description
    • Digital Caliper Gauge enables measurements in hard-to-reach places
    • Excellent resistance against water and dust IP67 level

    Features
    Digital/Analog:
    Digital
    Functions:
    Measuring contacts: carbide ball Ø 1,3 mm
    Delivered:
    Including 2 batteries LR3, certificate of inspection
    Range:
    13 - 43 mm

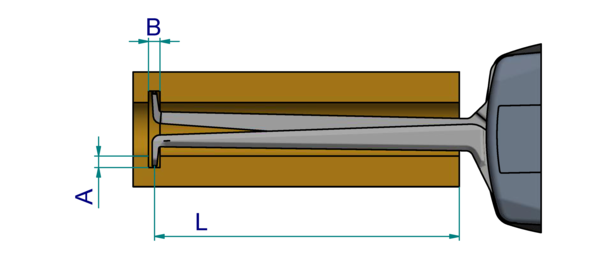

    Type:
    Fig. 4
    Digital step:
    0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05 mm
    Protection:
    IP67
    Measuring force:
    1,2-1,7 N
    Mass:
    360 g
    Power supply:
    2.0 batteries LR3.0 (AAA)
    ABS/INC switchable:
    Yes
    Auto Power OFF
    after 1/5/10 min. non use:
    YES
    OFFSET:
    Yes
    mm/inch conversion:
    Yes
    HOLD:
    Yes
    SET key:
    Yes
    DATA key:
    Yes
    DATA-Logger (100 measured values):
    Yes
    Max. reading:
    Yes
    Min. reading:
    Yes
    Tolerance LED (green/red):
    Yes
    Tolerance judgement:
    Yes

    No technical information is currently available.

    No application information is currently available.

    Product Documents

    Product Document Mitutoyo Internal Digital Caliper Gauge 13-43mm, 0,01mm, Carbide Ball D=1,3mm Item number: 209-944(Kroeplin Equivalent L313) Click to open the PDF document
