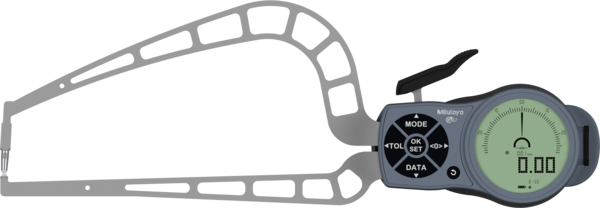

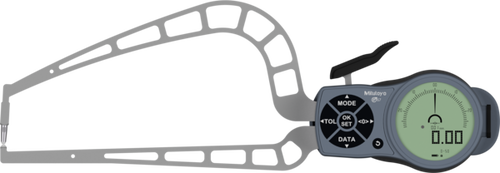

Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)
Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)
Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)
Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)
Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)
Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)
Roll over image to zoom in Click on image to zoom
Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)

Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50)

MitutoyoSKU: 209-955
List price: £926.00 Offer price: £676.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Round 6-Pin Type 937387
Part number: 937387  → View product
Mitutoyo Digimatic Cable, Round 6-Pin Type 965013
Part number: 965013  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable E Round 6-Pin Type 02AZD790E
Part number: 02AZD790E  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380E
Part number: 06AFM380E  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 011551 Interface adaptor
Part number: 011551  → View product

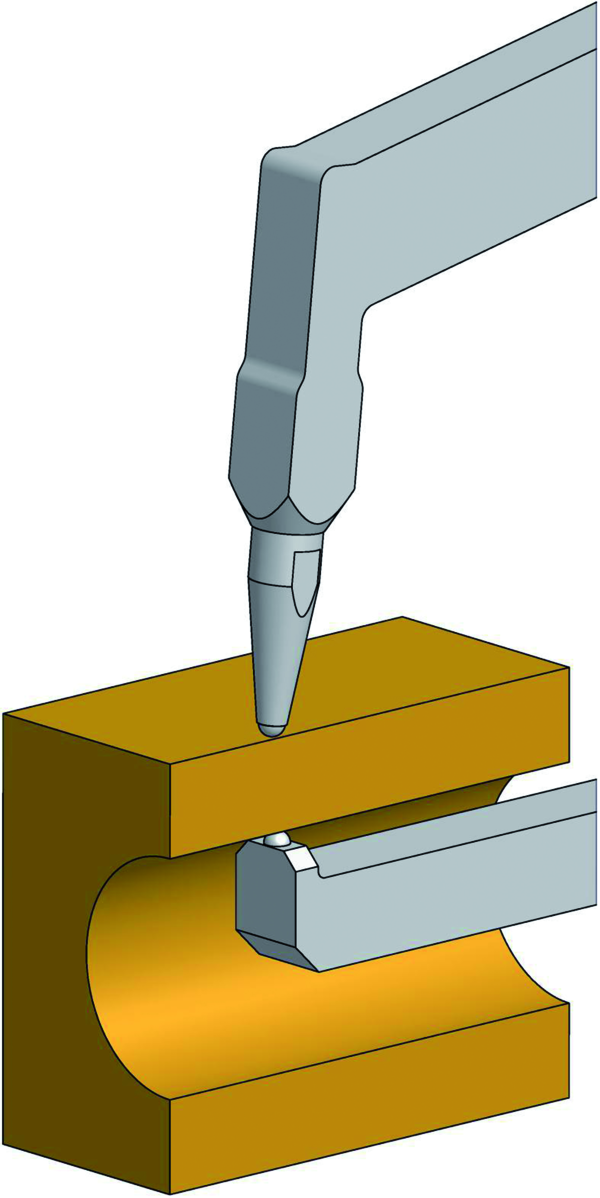

  • Digital Caliper Gauge enables measurements in hard-to-reach places
  • Excellent resistance against water and dust IP67 level
  • Digital/Analog:
    Digital
    Inch-Metric:
    Metric/Inch
    Delivered:
    Including 2 batteries LR3, certificate of inspection
    Range:
    0 - 50 mm
    Digital step:
    0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05 mm
    Protection:
    IP67
    Measuring force:
    0,8-1,7 N
    Mass:
    460 g
    Power supply:
    2 batteries LR03 (AAA)
    ABS/INC switchable:
    Yes
    Auto Power OFF
    after 1/5/10 min. non use:
    YES
    Analog bar resolution switchable:
    Yes
    OFFSET:
    Yes
    Type:

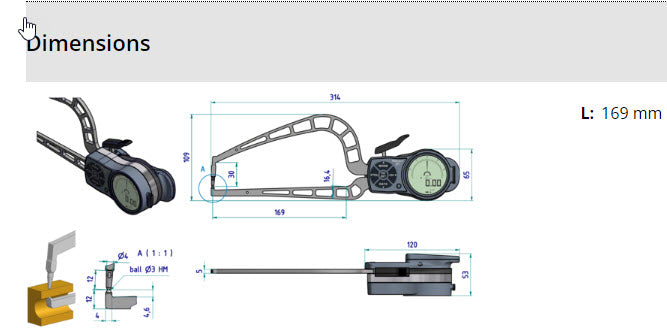

    Fig. 2
    Hb:
    30 mm
    Hf:
    4.3 mm
    mm/inch conversion:
    Yes
    HOLD:
    Yes
    SET key:
    Yes
    DATA key:
    Yes
    DATA-Logger (100 measured values):
    Yes
    Max. reading:
    Yes
    Min. reading:
    Yes
    Tolerance LED (green/red):
    Yes
    Tolerance judgement:
    Yes

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo External Digital Caliper Gauge 209-955, 0-50mm ( Kroeplin Equivalent K45R50) Click to open the PDF document
