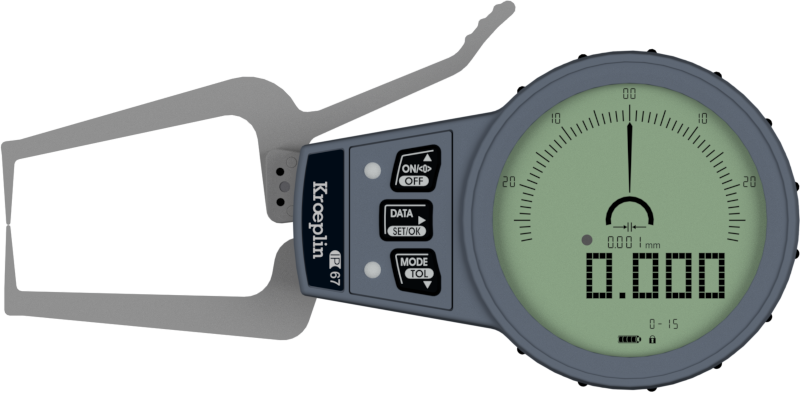

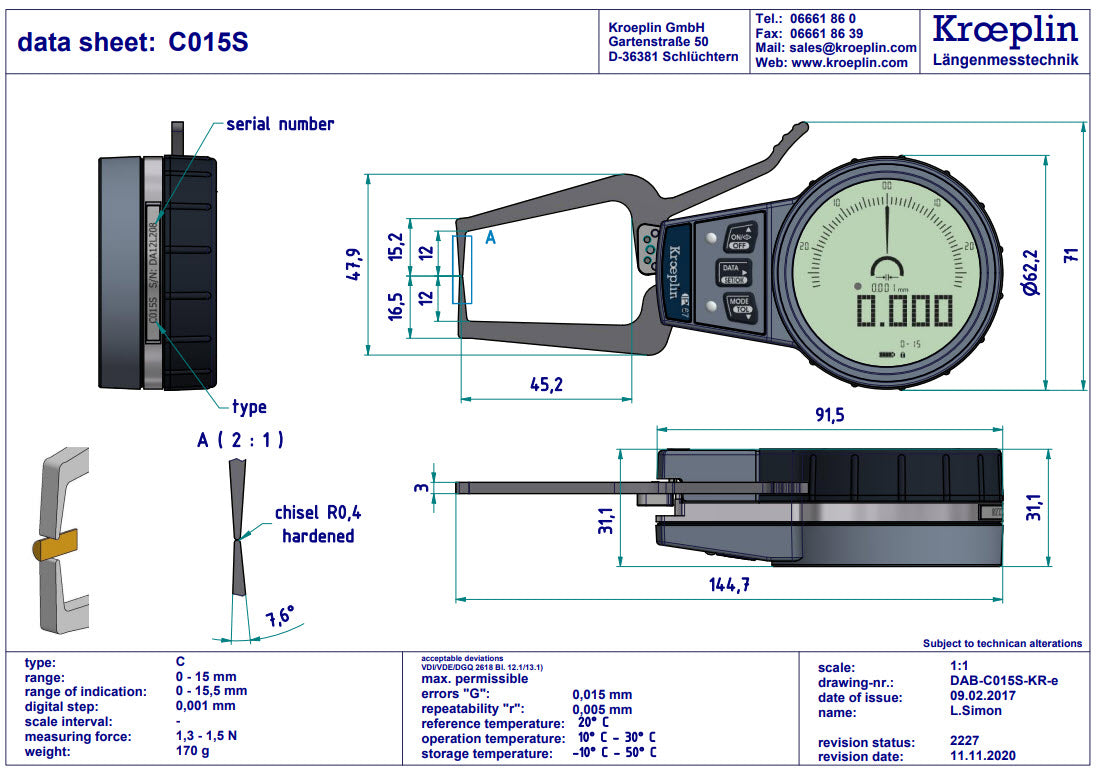

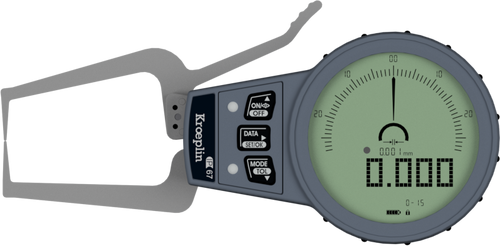

External Caliper Features:
- Range: 0-15mm (0-0.59?)
- Resolution: 0.001mm (0.0001?)
- Accuracy: ± 0.015mm (0.0006?)
- Repeatability: 0.005mm (0.0002?)

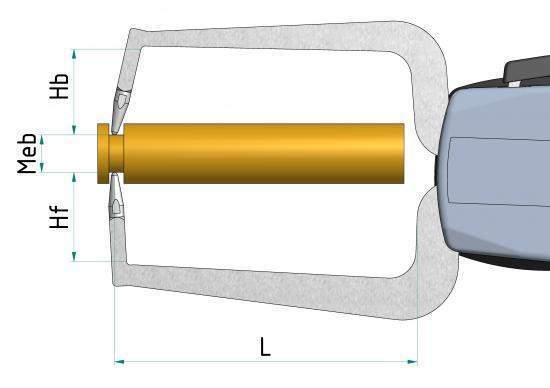

- Measuring depth: 45mm

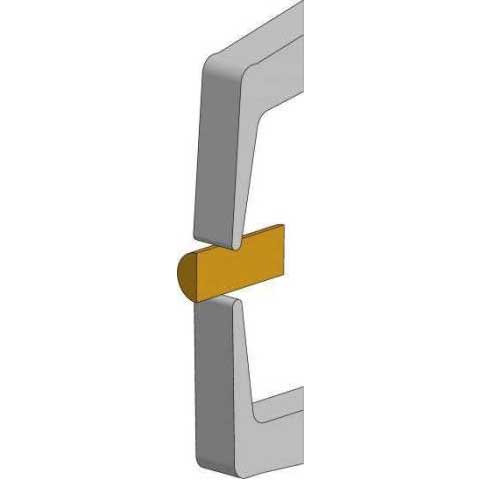

- Type of measuring contact: HM-Ball Ø 0.4mm
- Measuring contact fixed: 12mm
- Measuring contact moveable: 12mm
- Min measuring force: 1.3N
- Max measuring force: 5N
- IP67 protection: Water, coolant & dust resistant
- Application: External measurement
- Data output
- Inch/metric
- MPN: C015S
- Brand: Kroeplin
No technical information is currently available.
No application information is currently available.
