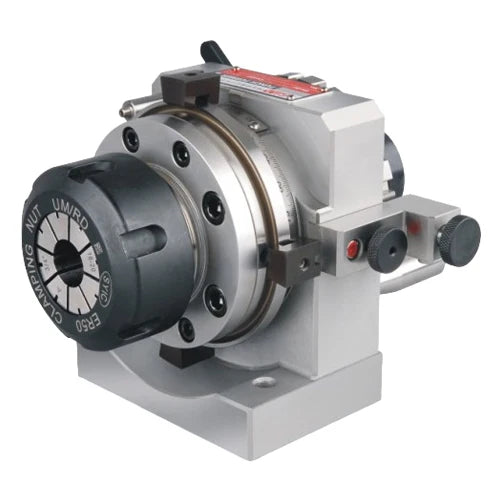

FC350-ER , ER50 COLLET DIV PUNCH GRINDER Collets 12, 18, 20, 30 & 40mm

 PFH-SER is adopting quality stainless steel with waterproof and stronger structure leading lasting durability.
► With ER collets, the flexible range of collet is 1mm.
► Capable collet clamping range: Min. Ø4mm, Max. Ø 20mm
► PFH-SER can rapidly clamp the workpiece and achieving higher stability during processing, no need to adjust the center accuracy.
► Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.

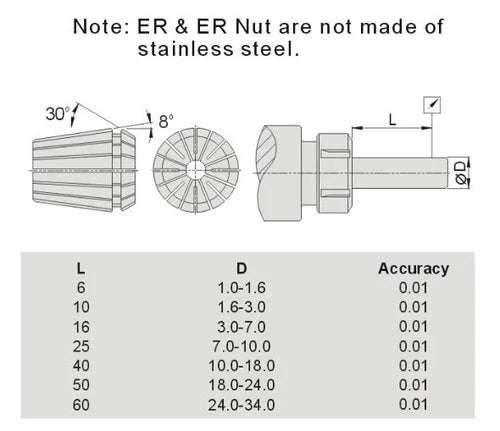

► This model is compatible with various ER collets such as ER20,

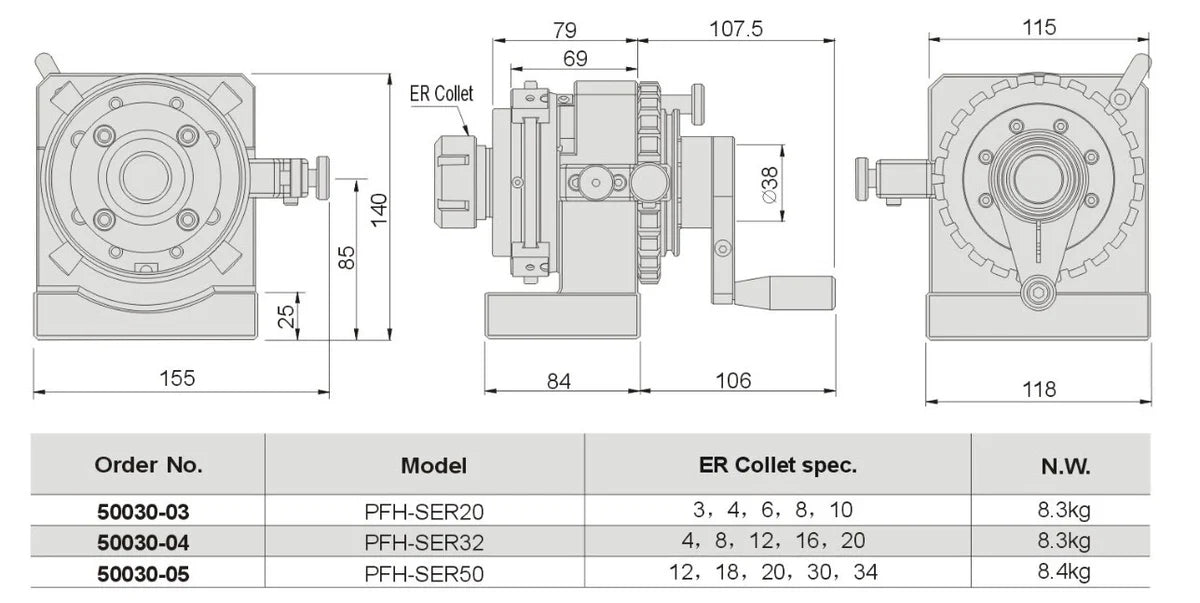

Main parameters:
Center height………………........………85 ± 0.5mm
Indexer tooth q'ty & accuracy………24、15°± 5"
Through hole diameters…………......……Ø 36mm
Rotational accuracy……………......………0.003mm
