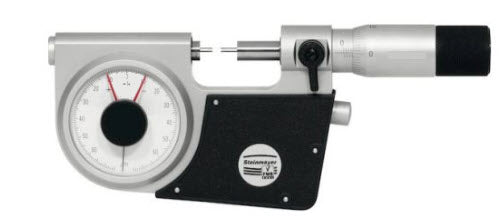

Steinmeyer Feinmess Suhl Indicating Spline Micrometer 0-25mm code 76053704520-IND25, accuracy Standard DIN 863 Micrometer reading .01mm Indicator .001mm with reduced anvils 3mm x 10mm (072108722)

Roll over image to zoom in Click on image to zoom

Steinmeyer Feinmess Suhl Indicating Spline Micrometer 0-25mm code 76053704520-IND25, accuracy Standard DIN 863 Micrometer reading .01mm Indicator .001mm with reduced anvils 3mm x 10mm (072108722)

Name: Steinmeyer Feinmess Suhl Indicating Spline Micrometer 0-25mm code 76053704520-IND25, accuracy Standard DIN 863 Micrometer reading .01mm Indicator .001mm with reduced anvils 3mm x 10mm (072108722)
Brand: Steinmeyer
SKU: 76053704520-IND25
Price: 1250.0 GBP
Availability: InStock

SteinmeyerSKU: 76053704520-IND25

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£1,250.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Measuring spindle through hardened and ground.
With precision lapped carbide tipped anvils.
Spindle and anvil of stainless steel.
One piece frame and spindle guide.
Button for retracting the measurement anvil for repetitive measurements.
With adjustment screw for zeroing.
Tolerance pointers for good/ reject measurements.
With hand temperature protection. Lever for spindle clamping.

Version - image:

Deviation read-off in 1/1000 mm.
Push button for anvil retraction.

Supplied with:

Adjustment wrench.

Note:

Measuring faces of CBN on request.

Feinmess Suhl Indicating Spline Micrometer 0-25mm code 76053704520-IND25, accuracy Standard DIN 863 Micrometer reading .01mm Indicator .001mm with reduced anvils 3mm x 10mm

Micrometer Range	0-25mm
Type of Micrometer	Mechanical
IP Rating	None
Select Micrometer Type	Indicating
Graduation	.001mm
Digital, Non-Digital	Non Digital
Additional Details	indication range =± 70 µm\| scale division precision indicator =1 µm\| indicator acc. to =DIN 879\| retraction range =2.5 mm\| reduced measuring faces= carbide\| meas. faces ø =3mm / 10 mm long\| delivery= in wooden box\|

Menu

Steinmeyer Feinmess Suhl Indicating Spline Micrometer 0-25mm code 76053704520-IND25, accuracy Standard DIN 863 Micrometer reading .01mm Indicator .001mm with reduced anvils 3mm x 10mm (072108722)

- Free UK delivery on orders over £100

Description

Version - image:

Supplied with:

Note:

Related Products

Recently viewed

Product Information
Part Number	76053704520-IND25
Measuring Ranges	0-25mm
Graduation	.01mm
Display Type	Analogue
Type	Spline
