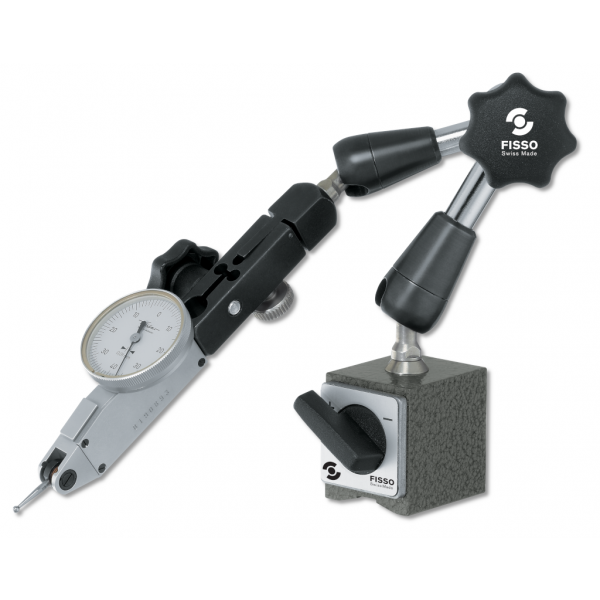

FISSO 1113.10 Classic Line Model: 1100-13 F + S2 - 3D articulated gauging arm with on off magnet, 8mm Stem. Indicator Not supplied

Articulated measuring stands Classic Line 1100-13 F + S2 magnetic, mechanical center lock and micro-fine adjustment
Freely adjustable arm
Chrome-plated linkage
Magnetic V base
Switchable magnet
Dial mounting hole Ø 8mm
Delivered in individual packages, without dial gauge
Applications:

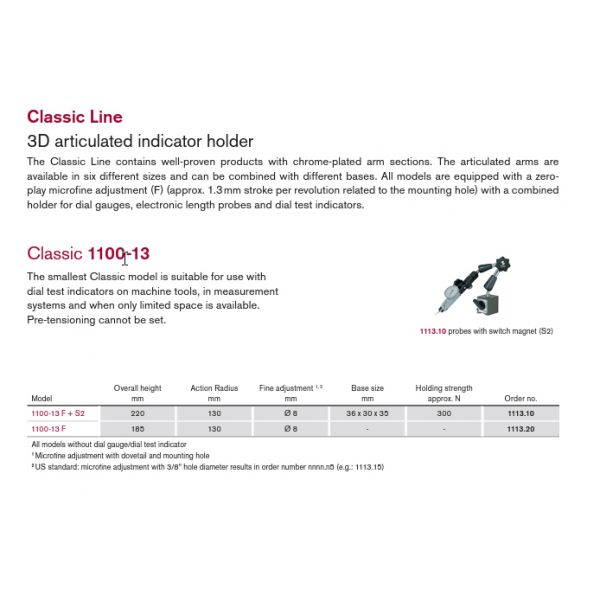

The smallest Classic model is suitable for use with dial test indicators on machine tools, in measurement systems, and when only limited space is available. Pre-tensioning cannot be set.
Articulated measuring stands Classic Line 1100-13 F + S2 magnetic, mechanical center lock and micro-fine adjustment
Size: 130/220mm
Brand: FISSO
Manufacturer number: 1113.10
Base: switch magnet
Base dimension: 34x30x35mm
op. range/height: 130/220mm
Height: 220mm
Fine adjustment: Ø 8mm
Adhesive force: 300N
Weight: 0.45kg

FISSO Classic Line Model: 1100-13 F + S2 - 3D articulated gauging arm with on off magnet, 8mm Stem. Indicator Not supplied
