Articulated measuring stands Classic Line 2200-20 F + M magnetic, mechanical center lock and micro-fine adjustment
Freely adjustable arm
Chrome-plated linkage
Magnetic V base
Switchable magnet
Dial mounting hole Ø 8mm
Delivered in individual packages, without dial gauge
Applications:
The small Classic model for measurement probes and dial gauges can be used in any type of mechanical system. Pre-tensioning cannot be set.
Articulated measuring stands Classic Line 2200-20 F + M magnetic, mechanical center lock and micro-fine adjustment Size: 200/310mm Article number: 1400401
Freely adjustable arm
Chrome-plated linkage
Magnetic V base
Switchable magnet
Dial mounting hole Ø 8mm
Delivered in individual packages, without dial gauge
Applications:
The small Classic model for measurement probes and dial gauges can be used in any type of mechanical system. Pre-tensioning cannot be set.
Articulated measuring stands Classic Line 2200-20 F + M magnetic, mechanical center lock and micro-fine adjustment Size: 200/310mm Article number: 1400401
Brand: FISSO
Force 800N
Manufacturer number: 2220.10
Base: switch magnet Base
dimension: 60x50x55mm height: 200/310mm
Height: 185mm
Fine adjustment: Ø 8mm
Adhesive force: - Weight: 1.55kg

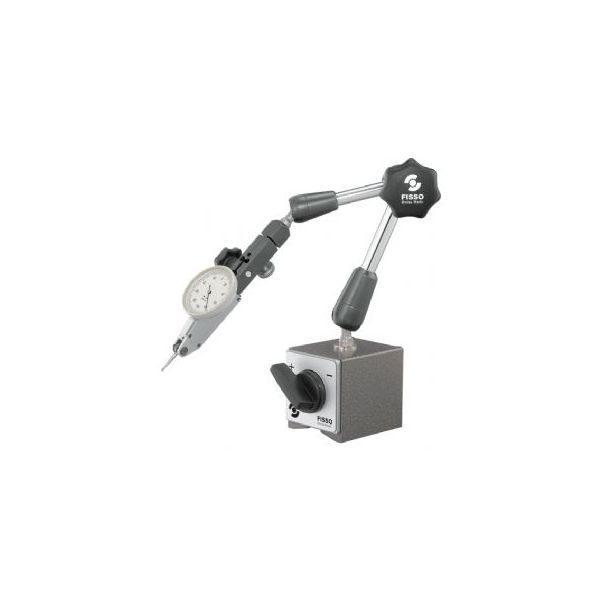

FISSO Classic Line Model: 2200-20 F + M - 3D articulated gauging arm with on off magnet, 8mm Stem. Indicator Not supplied
No technical information is currently available.
No application information is currently available.
