FISSO Strato Line M-28.10 Model: M-28 F + M - 3D articulated gauging arm with on off magnet, 8mm Stem Indicator Not supplied

Roll over image to zoom in Click on image to zoom

FISSO Strato Line M-28.10 Model: M-28 F + M - 3D articulated gauging arm with on off magnet, 8mm Stem Indicator Not supplied

Name: FISSO Strato Line M-28.10 Model: M-28 F + M - 3D articulated gauging arm with on off magnet, 8mm Stem Indicator Not supplied
Brand: Baitella AG, Fisso
SKU: M-28.10
Price: 292.0 GBP
Availability: InStock

Baitella AG, FissoSKU: M-28.10

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£292.00

Quantity:

All prices exclude VAT, which will be added at checkout.

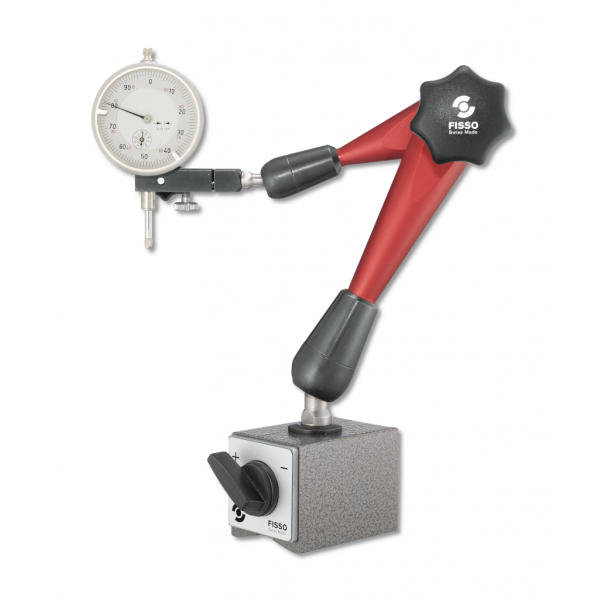

Articulated measuring stands Strato Line M-28 F + M magnetic, mechanical center lock and micro-fine adjustment

Freely adjustable arm

Aluminum linkage

Magnetic V base

Switchable magnet

Dial mounting hole Ø

8mm

Delivered in individual packages, without dial gauge
Applications:

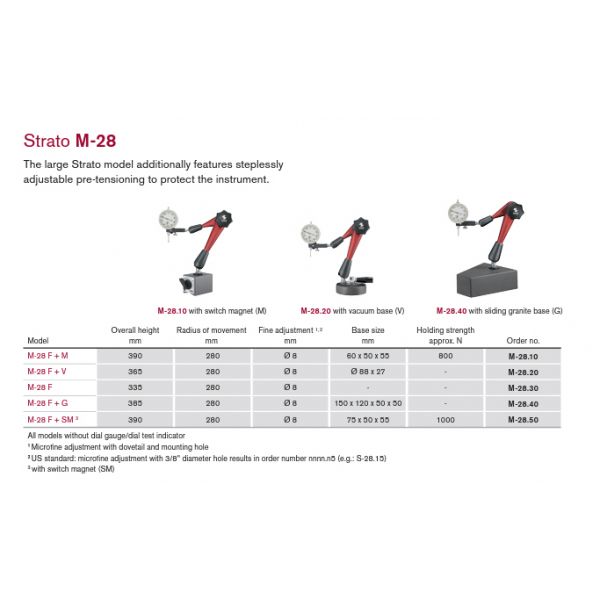

The large Strato model additionally features adjustable pre-tensioning to protect the instrument.
Size: 280/390mm
Brand: FISSO
Manufacturer number: M-28.10
Base: switch magnet
Base dimension: 60x50x55mm
op. range/height: 280/390mm
Height: 390mm
Fine adjustment: Ø 8mm
Adhesive force: 800N
Weight: 1.85kg

FISSO Strato Line Model: M-28 F + M - 3D articulated gauging arm with on-off magnet,

Indicator Not supplied

Product Information
Part Number	M-28.10
Type	Magnetic Stand
Height	390mm
Base Size	Magnet Width: 50mm Magnet Length: 60mm Magnet Height: 55mm
Magnetic Pull	800N
Fine Adjustment	Fine adjustment on top with universal swivel clamp.
