Force Gauge 0-500N ±0.2% MWT-8150

Name: Force Gauge 0-500N ±0.2% MWT-8150
Brand: Moore & Wright
SKU: MWT-8150
Price: 281.0 GBP
Availability: InStock

Moore & WrightSKU: MWT-8150

All prices exclude VAT, which will be added at checkout.

Price:

£281.00 £340.00

Quantity:

Force Gauge 0-500N ±0.2% MWT-8150

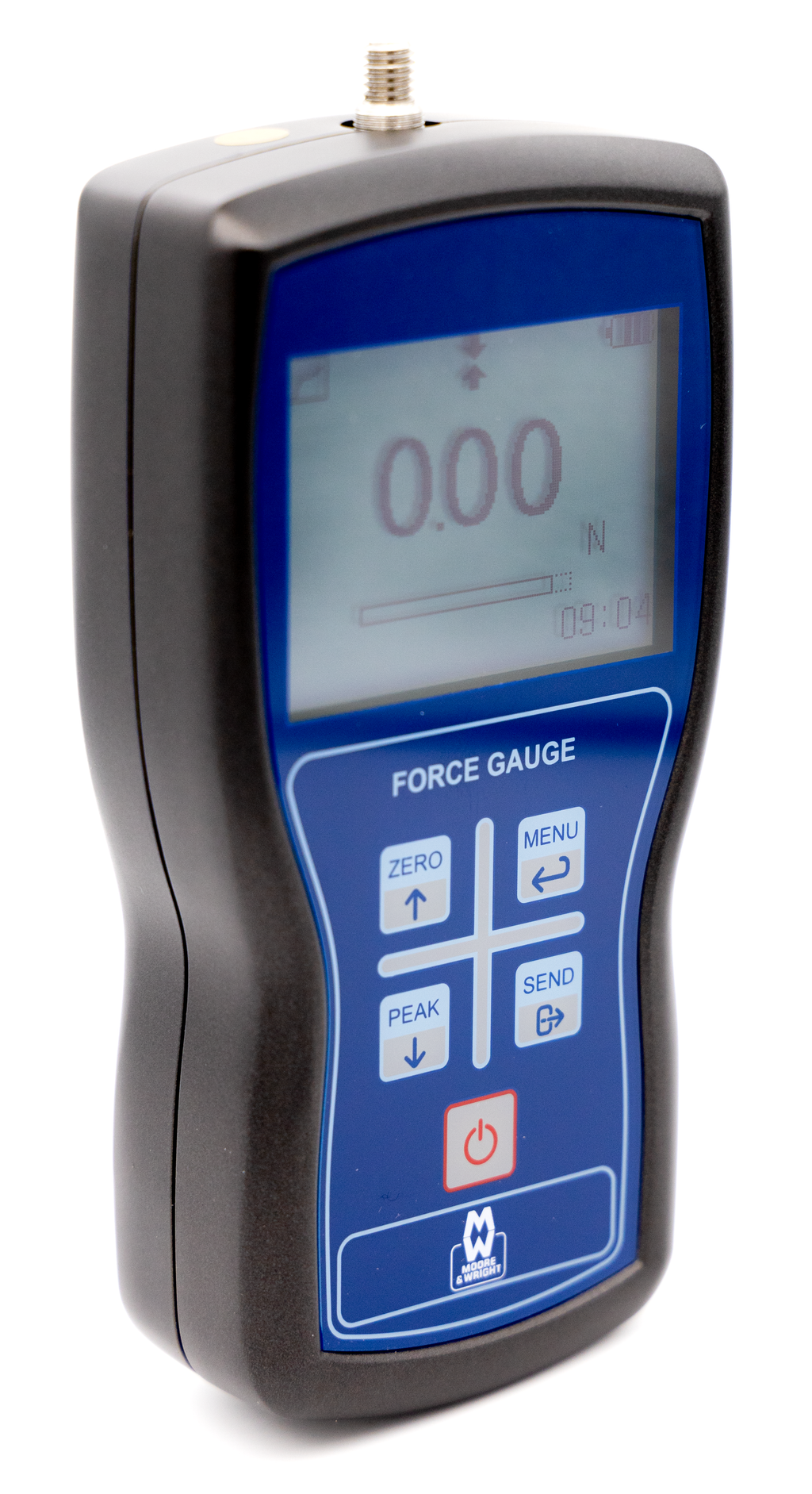

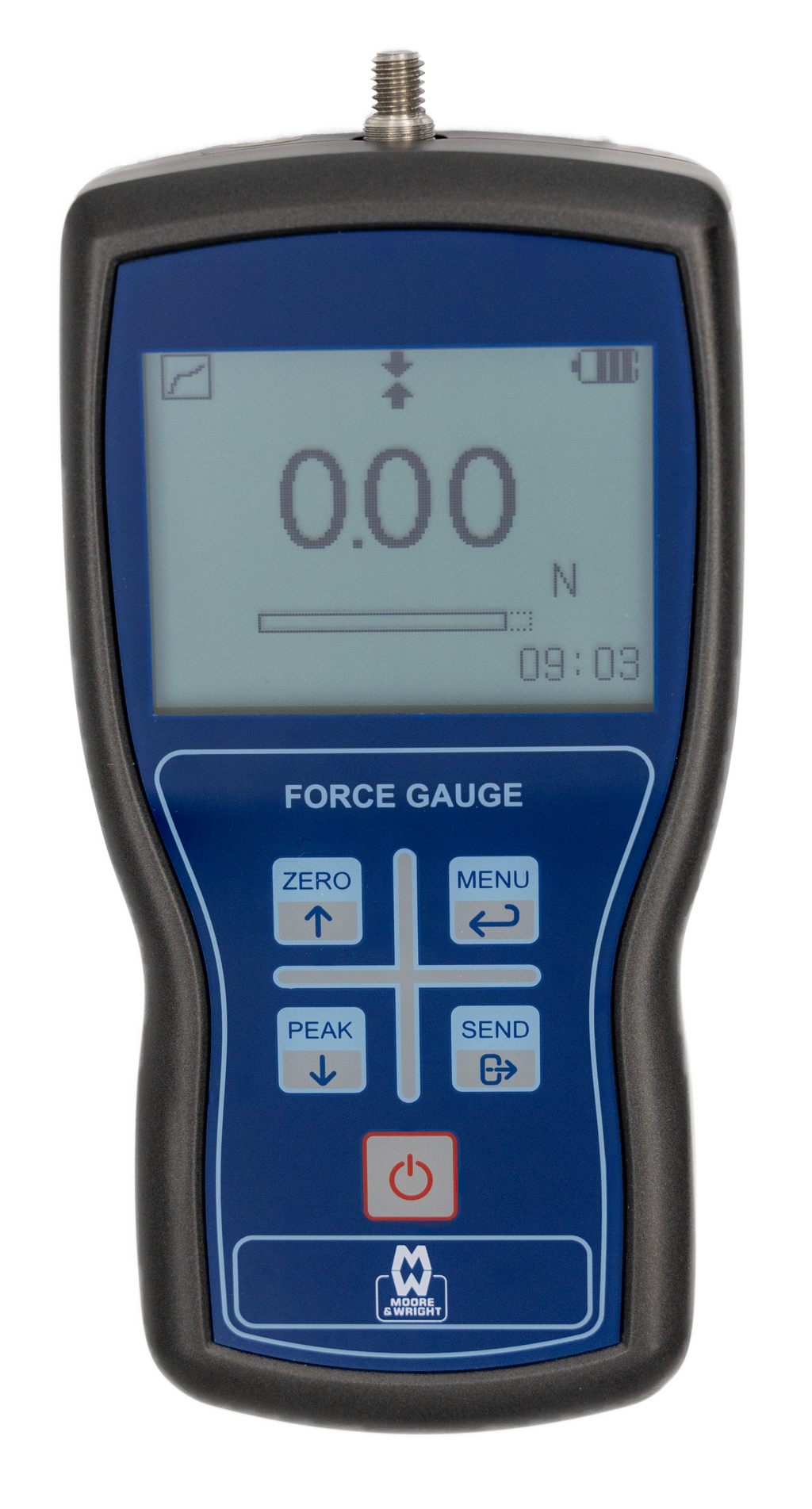

This compact and user-friendly handheld digital compression force gauge from Moore & Wright features an intuitive and clear digital display, as well as an advanced microprocessor ensuring high accuracy compressive and tensile force testing.

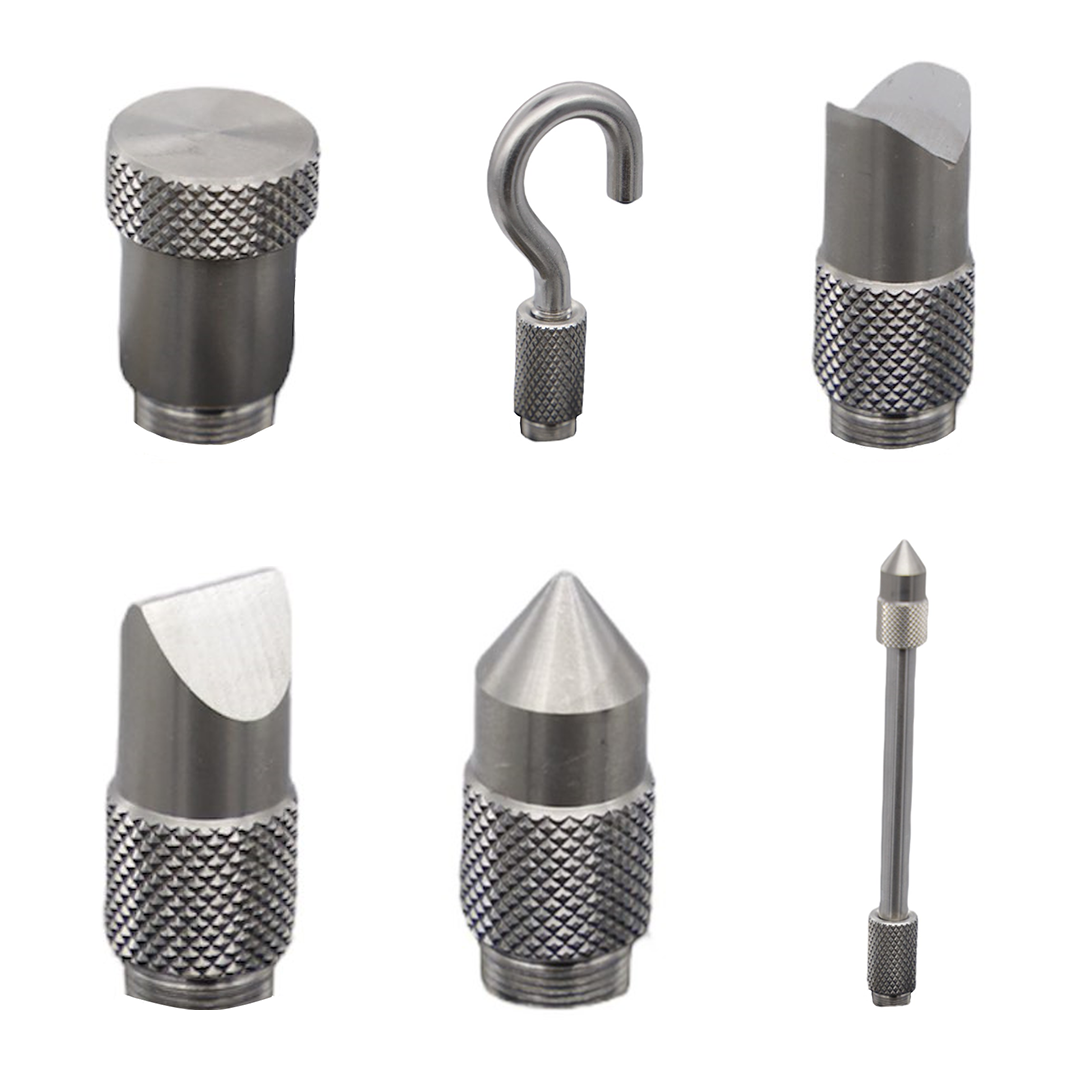

Featuring a compact durable metal housing with threaded holes for mounting to a frame. Models cover a variety of different ranges and resolutions. Each is supplied with a selection of measuring heads to contact the object under test, including a hook and extension shaft.

View Data Sheet

View User Manual

Features

User friendly touch keypad & full-format 160x128 dot matrix LCD (2.8 inch) backlit display with display update rate of 10 times per second
Accuracy = +/- 0.2% F.S.
Overload capacity = 150% of F.S. (LCD blinks beyond 110%)
Compact and durable metal housing
Selectable units of N, gf, kgf, ozf, and lbf
Supplied with a selection of measuring heads
Easily mountable to an external frame
Automatic display inversion depending on orientation
Mechanical overload protection
Includes USB charging cable
RS232 communication and alarm output port
Suitable in operating environments of -10 to 40°C and relative humidity of 20-80%
1000 data memory
Includes 3.6VDC 800MAH Ni-MH rechargable batteries with approx. 14 hours per charge
Supplied in a hard plastic case to house all accessories
Dimensions (mm) = 145 x 75 x 35 (digital gauge), 285 x 120 x 60 (in case)
Weight in grams = 700 (gauge only), 1200 (in case)

All images are for representation only.
