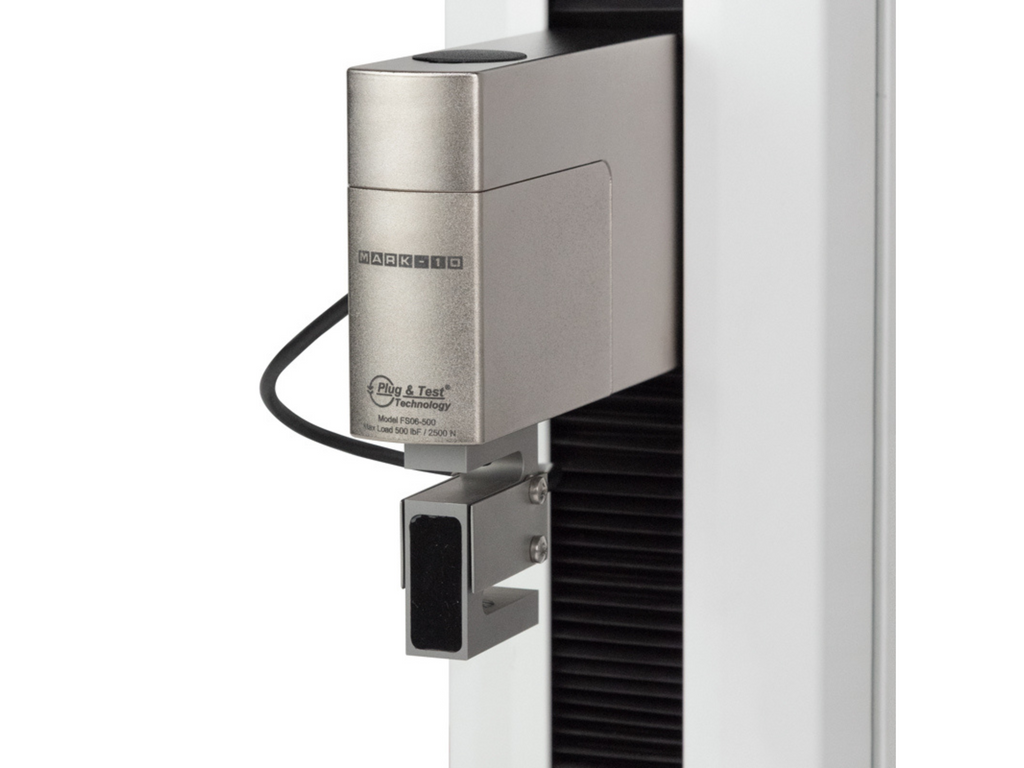

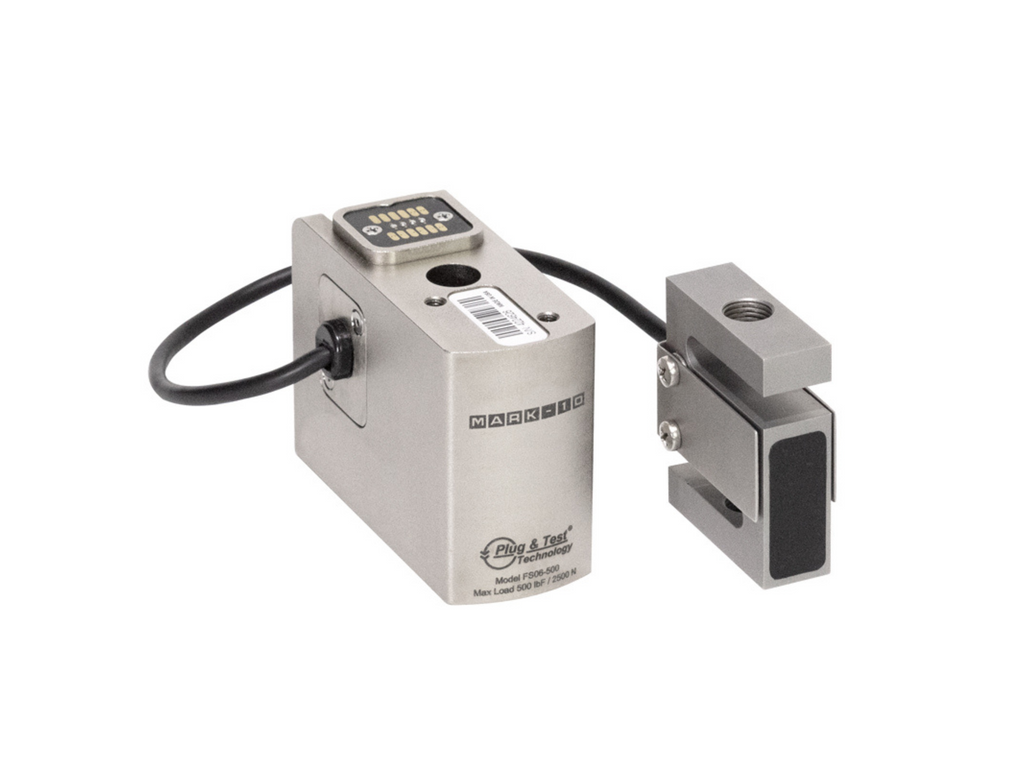

Mark-10 Series FS06 Tension and Compression Force Sensors

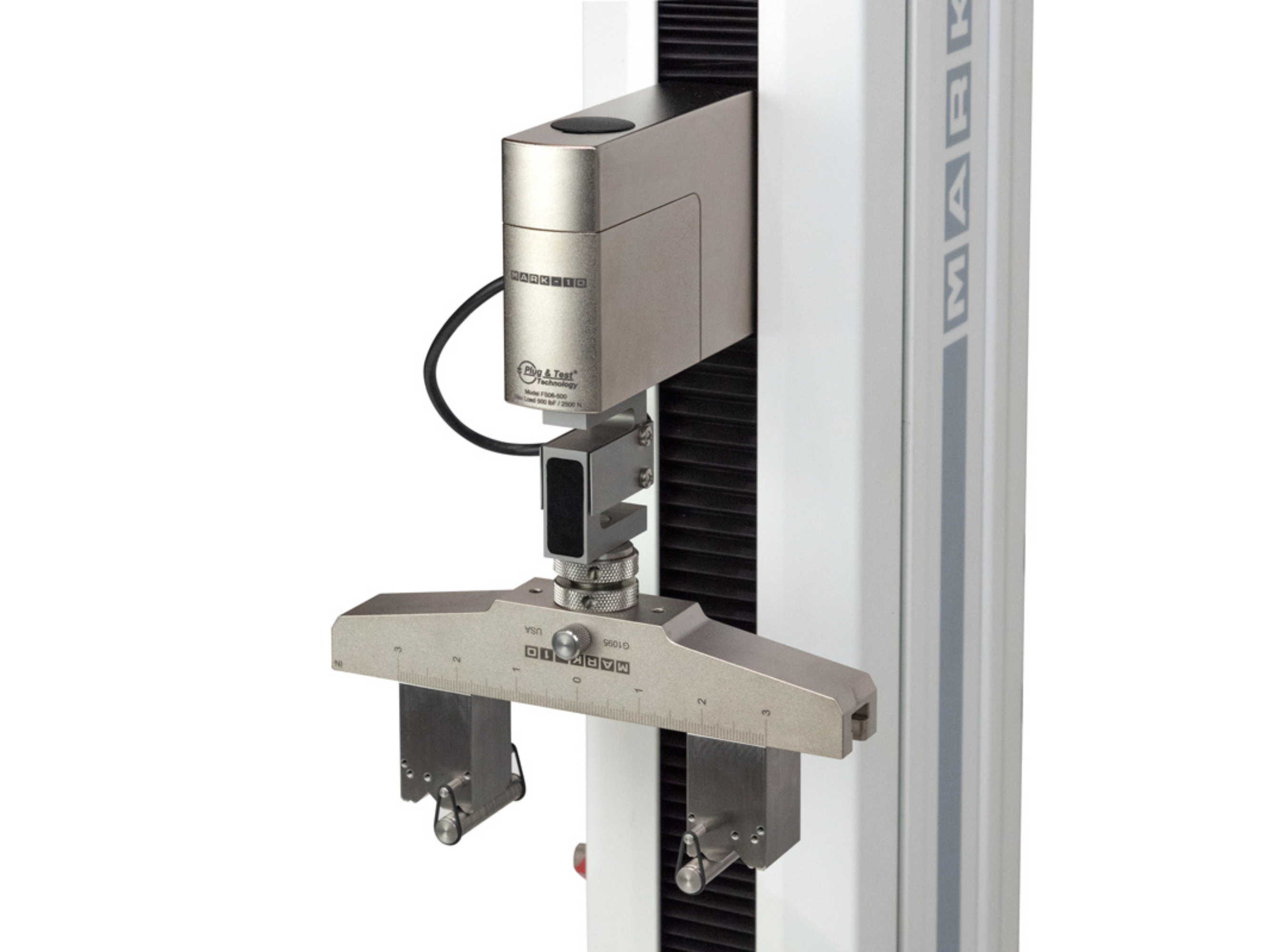

Series FS06 force sensors measure tension and compression forces. Designed to accommodate bulkier grips and fixtures, they are compatible with Series F test frame models up to 500 lbF / 2.2 kN.
With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter AC1083 required).
Ranges are available from 50 to 500 lbF [250 N to 2.5 kN].
Compatible with Models F105, F305, F505, and F505H.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
