Specifications
| Accuracy | 0.003mm |
| Resolution | 0.0005mm |
| Measuring Range | 12.7mm |
| Backhaul Error | 0.0015mm |
| Repeatability | 0.001mm |
| Working Hours | ?1500h |
| Order No. | Measuring Range | Resolution | Repeatability | Max.Error | Backhaul Error | Bluetooth |
| I-DIP-4010 | 12.7mm | 0.0005mm | 0.001mm | 0.003mm | 0.0015mm | – |
| I-DIP-4010-(B) | 12.7mm | 0.0005mm | 0.001mm | 0.003mm | 0.0015mm | ? |

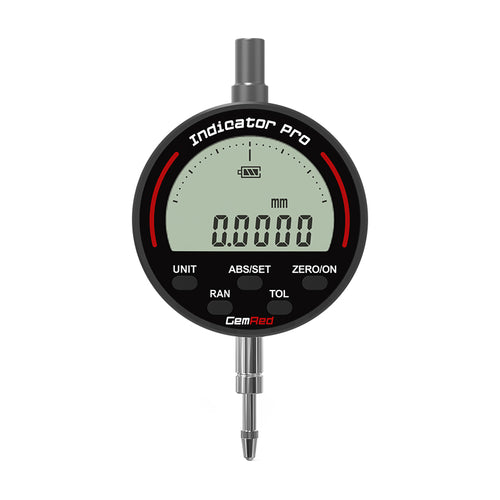

This tool can measure the difference of tolerance of a roller or shaft directly. Extra large LCD for easy viewing.
With double displays, digital display and electronic scales, Easy to measure batch manufacturer products.
Key Features:
- Accurate measurements.
- Digital & scale value displayed simultaneously.
- Automatic data collection via wireless transmission.
- Set tolerances on the PC, and save the measurements for analysis.
- Built in high-precision capacitive displacement sensor, with a battery life of1500 hours.
Specifications:
- Measurement Range: 12.7mm
- Resolution: 0.0005mm
- Accuracy: ±0.003mm
- Backhual Error: 0.0015mm
- Repeatability: 0.001mm
- Charging Port:Type-C
- Dimensions: 63×120×37mm
- Weight: 170g
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
