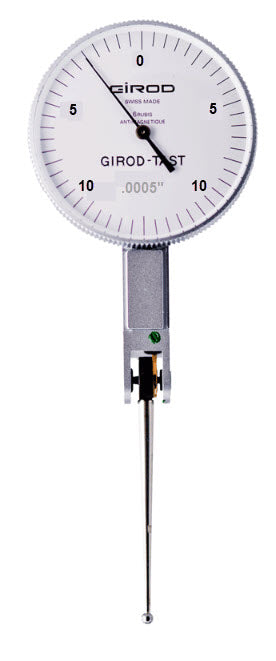

Girod Horizontal Indicator Long stylus GT 1454A, Graduation: .0005", Range: .020", Reading: 0-10-0, Face 1.5'', Stylus 1.18'', DIN 2270

Roll over image to zoom in Click on image to zoom

Girod Horizontal Indicator Long stylus GT 1454A, Graduation: .0005", Range: .020", Reading: 0-10-0, Face 1.5'', Stylus 1.18'', DIN 2270

Name: Girod Horizontal Indicator Long stylus GT 1454A, Graduation: .0005", Range: .020", Reading: 0-10-0, Face 1.5'', Stylus 1.18'', DIN 2270
Brand: Girod
SKU: GT 1454A
Price: 105.0 GBP
Availability: InStock

GirodSKU: GT 1454A

All prices exclude VAT, which will be added at checkout.

Price:

£105.00 £150.00

Quantity:

Manufactured in Switzerland

High sensitivity repeatability and accuracy. All Girod-Tast indicators meet or exceed Federal or DIN specifications or other national standards. All Girod-Tast indicators have proven reliability durability and modern design features. Unaffected by magnetic fields. Automatic reversing contact point with constant clockwise rotation. Easy and error-free reading by only one revolution of the hand. Adjustable bezel and dial. Fully jeweled completely independent and interchangeable movement. Easily and quickly removed and replaced for maintenance. Rugged one-piece housing provided with 3 dovetails : top back and front ; corrosion resistant with satin chrome finish. Contact point swivel supported in precision ball bearings. Designed for universal applications. Well-suited for workshop use. Interchangeable carbide contact point swivels over 240 Deg

Style of Indicator	Lever Horizontal Test Indicators Inch Long Stylus
Face Diameter	1.5"
Measurement units	Inch
Indicator Range	.02"
Measuring Range	.02"
Graduation	.0005"
Dial Reading	0-15-0
Stylus Length	1.18"
scale	0-15-0
Accuracy	.0005"
Digital, Non-Digital	Non Digital
Measuring Force	.15N

Product Information
Part Number	GT 1454A
Measuring Range	0.020"
Graduation	.0005"
Accuracy	+/-.0005"
Unit of Measurement	Inch
Display Type	Analogue
Measuring Force	≤0.3N
Type	Horizontal
Material	Tungsten Carbide
Length	1.18"
Repeatability	.0005"
Dial Face Size Ø	1.5"
Scale	0-15-0
