HAWKEYE® FLEXIBLE BORESCOPES
Hawkeye Flexible Borescopes have 18,000 optical glass fibers, delivering high resolution, sharpness, and image detail
comparable to a rigid borescope. Image quality is further
enhanced by the use of ACID LEACHED fiber bundles to
greatly improve contrast and color. Illumination comes from
a powerful, portable superNova light directed through glass
fibers to the subject. A clear bright image is returned to the
eyepiece revealing burrs, contaminants, or fractures. The
Hawkeye Flexible Borsescope is available in two models.
The CLASSIC MODEL features a plastic coated, stainless steel semi-rigid shaft that keeps
its shape when bent to work around obstacles. It has a diameter of only .320” (8 mm)
to easily fit into small openings.
The PRO MODEL ups the ante by including full TWO-WAY ARTICULATION and features a
super-tough stainless steel braided shaft that’s only .200” (5 mm) in diameter. This unit is
the perfect turbine inspection tool.

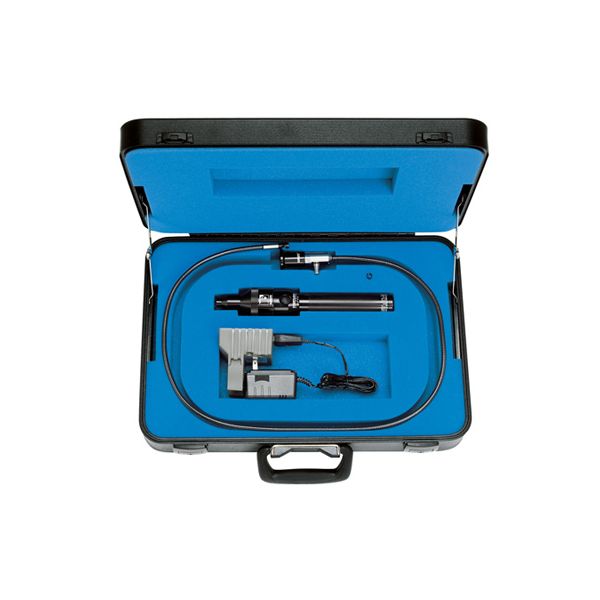

Each Hawkeye Flexible Borescope Kit contains:
• High Resolution Hawkeye Flexible Borescope
• Mirror Tip (optional tip prism available)
• Hawkeye superNOVA Light and Charger
• Hawkeye Cleaning Kit
• Rugged Aluminum Hawkeye Carrying Case
PART NO. ARTICULATION FOV L
Hawkeye Flexible Borescopes have 18,000 optical glass fibers, delivering high resolution, sharpness, and image detail
comparable to a rigid borescope. Image quality is further
enhanced by the use of ACID LEACHED fiber bundles to
greatly improve contrast and color. Illumination comes from
a powerful, portable superNova light directed through glass
fibers to the subject. A clear bright image is returned to the
eyepiece revealing burrs, contaminants, or fractures. The
Hawkeye Flexible Borsescope is available in two models.
The CLASSIC MODEL features a plastic coated, stainless steel semi-rigid shaft that keeps
its shape when bent to work around obstacles. It has a diameter of only .320” (8 mm)
to easily fit into small openings.
The PRO MODEL ups the ante by including full TWO-WAY ARTICULATION and features a
super-tough stainless steel braided shaft that’s only .200” (5 mm) in diameter. This unit is
the perfect turbine inspection tool.
Each Hawkeye Flexible Borescope Kit contains:
• High Resolution Hawkeye Flexible Borescope
• Mirror Tip (optional tip prism available)
• Hawkeye superNOVA Light and Charger
• Hawkeye Cleaning Kit
• Rugged Aluminum Hawkeye Carrying Case
PART NO. ARTICULATION FOV L
No technical information is currently available.
No application information is currently available.
