GT21 Standard Probe +/- 1 mm, F 2.5 N 03210907

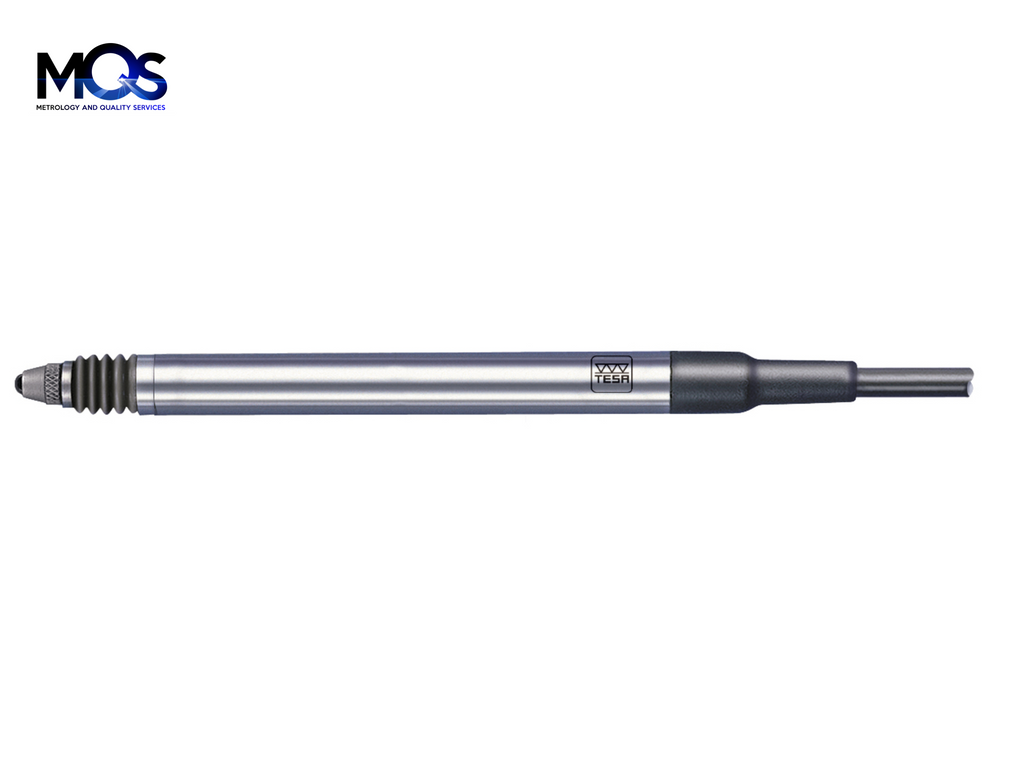

Tesa GT21 Standard Axial Inductive Probe

• Measuring range: ± 1mm
• Measuring force: 2.5N
• Bolt travel: 4.3mm
• Bolt retraction: Mechanical
• Repeatability: 0.00001mm
• Hysteresis: 0.00002mm
• Accuracy (L in mm): 0.2 + 3 x L x L x L µm
• Ball insert: Tungsten carbide Ø 3mm
• Cable: 2m, Axial
• Sealing bellow: Nitrile
• IP Rating: IP65
• Standard: DIN 32876

PROBE
- Measuring bolt mounted on a ball bearing
- Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
- Guiding is insensitive to any radial force exerted on the measuring bolt
- Ø 8 mm probe housing, can be clamped over its entire length
- The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
- Version with detachable cable available (depending on model)

MEASUREMENT
- Axial movement
- The measuring force can be adjusted by changing the spring (depending on model)
- The measuring inserts can be replaced or exchanged
