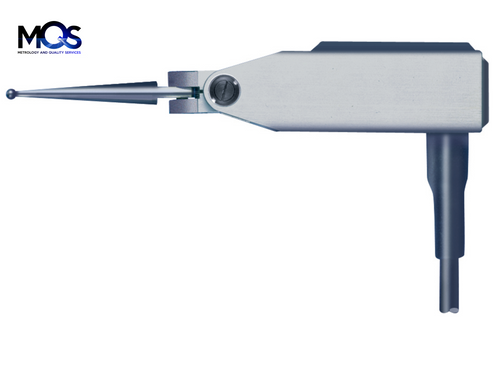

GT31 Lever Probe +/- 0.3 mm, F 0.02 N 03210801

• Measuring range: ± 0.3mm
• Measuring force: 0.02N
• Bolt travel: 0.7mm
• Repeatability: 0.0001mm
• Hysteresis: 0.00025mm
• Accuracy (L in mm): 0.2 + 50 x (L x L) µm
• Ball insert: Tungsten carbide Ø2mm
• Cable: 2m
• Housing material: Matt chrome-plated
• IP rating: IP40
• Standard: DIN 32876

Tesa GT31 Lever Type Inductive Probe

Standard: DIN 32876 (part 1)

Material:
- Metal case: matt chrome
- Measuring rod: stainless steel
- Ball contact: hard metal

Dimensions:
- Contact with a ball: Ø 2 mm
- Cable: 2 m
- Connector: 5p DIN 45322

Degree of protection: IP40 (CEI 60529)
Supply:
- Power frequency 13 kHz (± 5%)
- Mechanical frequency max. 25 Hz
