- Measuring range: ± 0.3mm
- Measuring force: 0.2N
- Bolt travel: 0.7mm
- Repeatability: 0.0001mm
- Hysteresis: 0.00025mm
- Accuracy (L in mm): 0.2 + 50 x (L x L) µm
- Ball insert: Tungsten carbide Ø2mm
- Cable: 3m
- Housing material: Matt chrome-plated
- IP rating: IP40
- Standard: DIN 32876

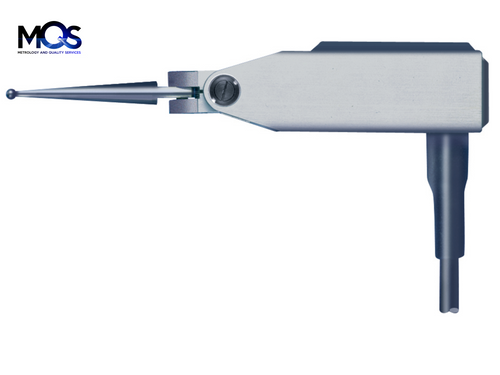

Tesa GT31 Lever Type Inductive Probe
Standard: DIN 32876 (part 1)
Material:
- Metal case: matt chrome
- Measuring rod: stainless steel
- Ball contact: hard metal
Dimensions:
- Contact with a ball: Ø 2 mm
- Cable: 2 m
- Connector: 5p DIN 45322
Degree of protection: IP40 (CEI 60529)
Supply:
- Power frequency 13 kHz (± 5%)
- Mechanical frequency max. 25 Hz
