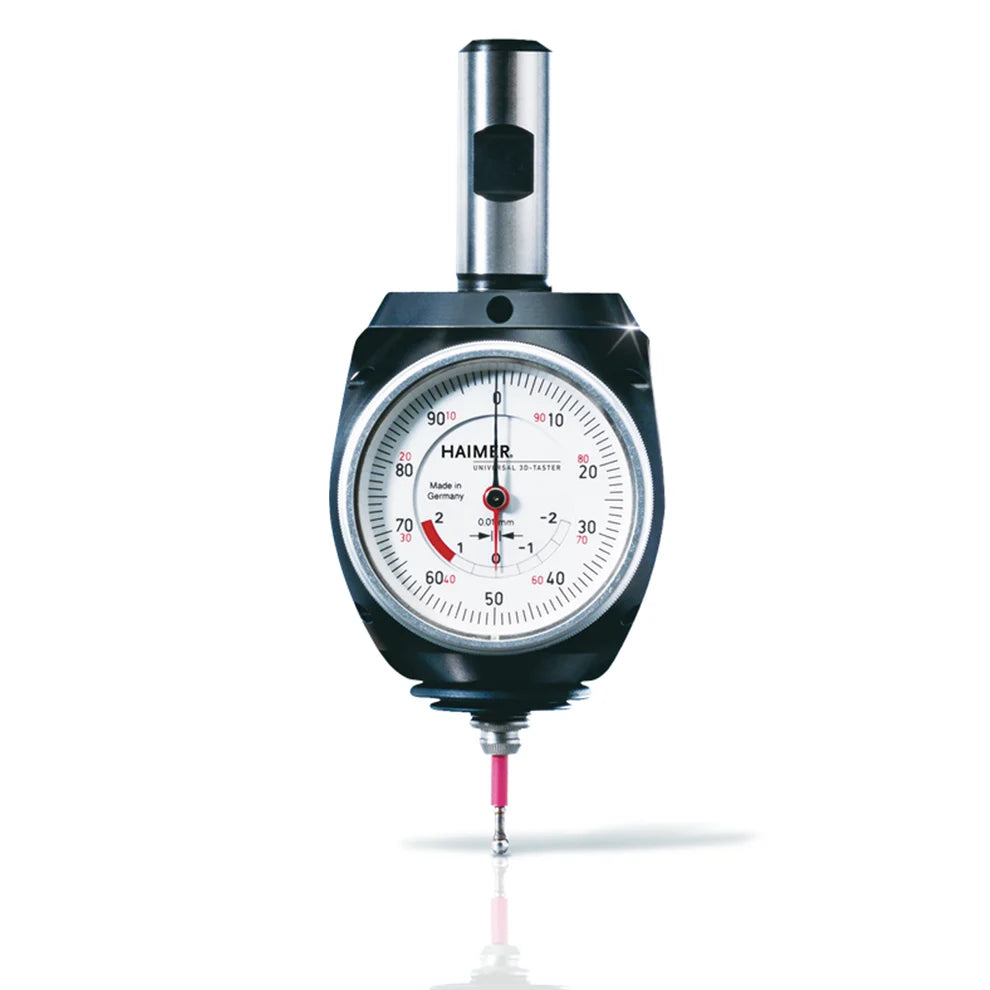

Universal 3D-Sensor
The Universal 3D-Sensor is a very precise and versatile measuring instrument
for milling and EDM machines (insulated probe). Once clamped into the machine
spindle, the run-out (T.I.R) is fully adjustable to Zero. Then, it can be used to bring
the spindle axis on the edges of the workpiece. This allows to set zeros and to
measure quickly and easily. approachability in any direction (X-, Y-, Z- axis). When
the dial gage shows zero, the spindle axis is exactly on the edge of the workpiece.
No calculating of the probe’s ball diameter is necessary – just Zero it out! Problems
with mathematics or calculations are eliminated. It helps increasing the productivity
and accuracy of the operator.

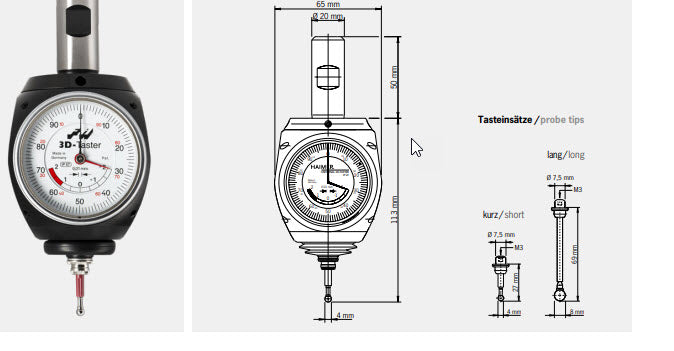

Short and long probes are available. The sensor probes may be changed without
any tool, no re-calibration of the unit is needed.
Additional safety, the unit has a large overrun distance in connection with the fully
tested preset breaking points giving the sensor long life. All Universal 3D-Sensors
are individually tested and adjusted when being assembled in order to achieve a
maximum of measuring precision.
■ IP 67 waterproof
