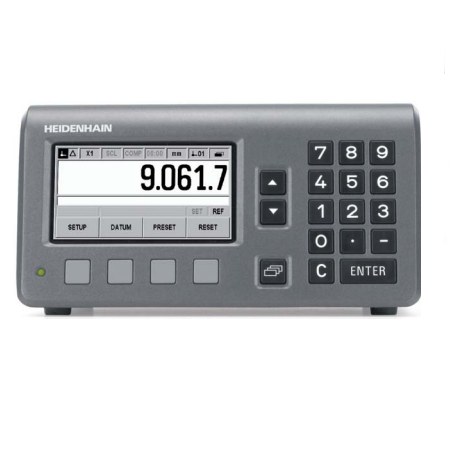

Heidenhain 636280-01 (ND 280) Digital Display

he ND 280 digital readout for one axis
is designed for simple measuring and
positioning tasks, such as infeed for a
circular saw, the stroke of press travel, or
the position of an additional rotary table on
a machine tool.
Design
The ND 200 series features a sturdy
aluminum die-cast housing. The splashproof full-travel keyboard is built for the
workshop. A large graphic TFT monitor
displays the measured values, the status
and the soft-key row.
Functions

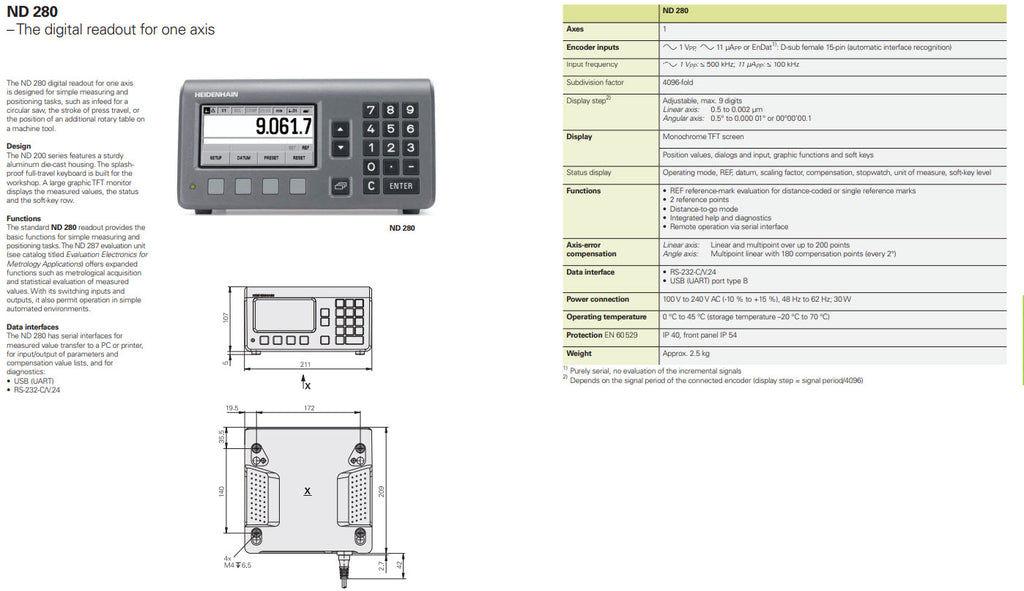

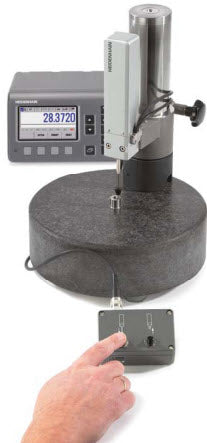

The standard ND 280 readout provides the
basic functions for simple measuring and
positioning tasks. The ND 287 evaluation unit
(see catalog titled Evaluation Electronics for
Metrology Applications) offers expanded
functions such as metrological acquisition
and statistical evaluation of measured
values. With its switching inputs and
outputs, it also permit operation in simple
automated environments.
Data interfaces
The ND 280 has serial interfaces for
measured value transfer to a PC or printer,
for input/output of parameters and
compensation value lists, and for
diagnostics:
• USB (UART)
• RS-232-C/V.2

Heidenhain 636280-01 (ND 280) 1-Axes Digital Monochrome TFT Readout with angle or error compensation and RS232 or USB Output

Digital readout for metrology applications

Features: length, angle, error compensation

Number of encoder inputs: 1x,

Electrical Connection: 15 Pin DSub

Position encoder input: 1Vpp/11µApp/EnDat22

Type of display: Monochrome TFT Screen

Output: USB or RS232
