Heidenhain METRO 2581 ID 363409-02 Measuring length: 25 mm Accuracy grade: 0.2 µm

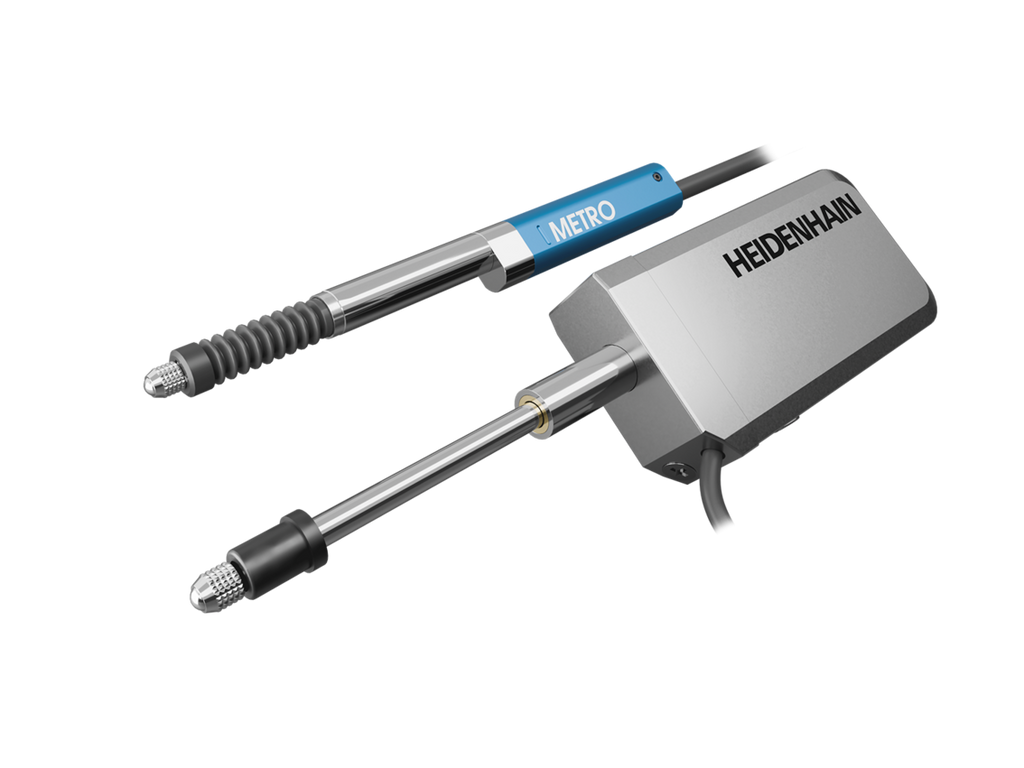

The METRO series length gauges offer high accuracy over long measuring ranges: with the MT 101 length gauges, measuring ranges of up to 100 mm are attainable at a system accuracy of ±1 µm.

The optimal material mix, optomechanics, and ball-bearing-guided, zero-backlash plunger ensure very high repeatability. The result: very high measured value quality through very low measuring dispersion.

For particularly delicate workpieces, special variants with very low gauging forces of down to 0.01 N are available. Motorized length gauges, such as the MT 60M or the MT 101M, additionally ensure constant gauging forces over the entire measuring range.

• Manually operated with a cable release
• Movement of length gauge relative to tested object
• Movement of tested object relative to length gauge
• Coupling to a moving machine part
• Pneumatic, via compressed air connector on length gauge
• Motorized, via an integrated motor and pushbutton controller

• MT 2581 Incremental length gauge HEIDENHAIN-METRO

  Plunger actuation:      extended by spring force

  Measuring length:       25 mm

  Type of guide:          ball-bush guide

  Reference mark position:1.7 mm

  Accuracy grade:         0.2 µm

  Electrical connection:  D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

  Pin configuration:      D330978

  Cable type:             PUR Ø 4.5 mm

  Cable length:           1.50 m

  Output signal:          sinusoidal voltage signals  (1 Vpp)

  Grating period:         4.000 µm

  Power supply:           5V+-5%

  Protection rating:      IP50 (EN60529)

  Operating temperature:  +10/+40 °C
