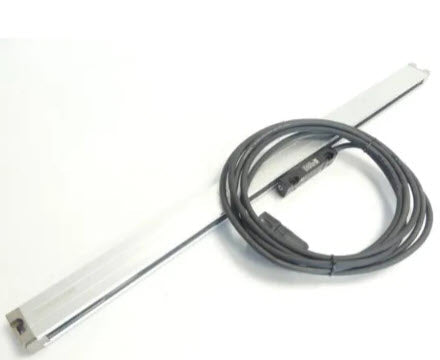

Heidenhain LS303 320mm Glass Scale ID334-751-07

Roll over image to zoom in Click on image to zoom

Heidenhain LS303 320mm Glass Scale ID334-751-07

Name: Heidenhain LS303 320mm Glass Scale ID334-751-07
Brand: Heidenhain
SKU: LS303
Price: 450.0 GBP
Availability: InStock

HeidenhainSKU: LS303

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£450.00

Quantity:

All prices exclude VAT, which will be added at checkout.

The HEIDENHAIN LS 303 / LS 303C incremental linear scales are used for simple, but accurate positioning tasks on machine tools and measurement applications and offers the following features...

DIDUAR glass graduation (20µm grating)
±10µm accuracy grades
11µApp incremental signals
20µm signal period
Measuring lengths from 70mm to 2040mm
Distance Coded reference marks (every 50mm) or single center reference mark
Max. cable length is 50 meters
IP 53 rating

Customer Support

Contact our customer support team via email or call our hotline number

Phone - 02476 644661

Secure payments

We offer multiple secure payment options

Product Information
Part Number	LS303
Measuring Ranges	2-4"
Graduation	.0005"
Accuracy	.0015"
Unit of Measurement	Inch
Display Type	Analogue
IP Rating	IP65
Measuring Force	1.1-1.6N
Type	Internal
Repeatability	.001"
Measuring Contacts	Carbide Ball .0394"
Measurement L	3.3"
Measurement B	0.48"
Measurement A	Variable
Manufacturer	Kroeplin
