Hildebrand Code 2228081, Model HD3000 Shore D Hardness Tester With Drag Pointer DIN ISO 7619-1, ISO 868, ISO 7619, ASTM D 2240 (Linear Ball Bearings)

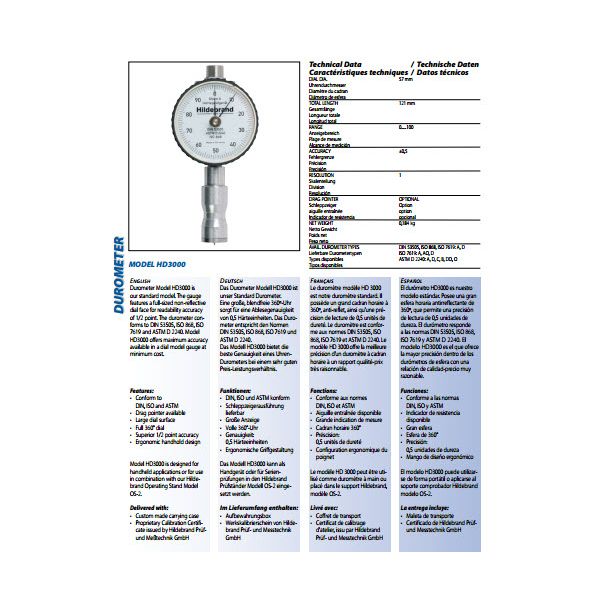

Durometer Model HD3000 is our standard model. The gauge features a full-sized non-reflective dial face for readability accuracy of 1/2 point.
The durometer conforms to DIN 53505, ISO 868, ISO 7619 and ASTM D 2240. Model HD3000 offers maximum accuracy available in a dial model gauge at minimum cost.

Features:

• Conform to DIN, ISO and ASTM
• With Drag pointer
• Large dial surface
• Full 360° dial
• Superior 1/2 point accuracy
• Ergonomic handhold design

Model HD3000 is designed for handheld applications or for use in combination with our Hildebrand Operating Stand Model OS-2.

• Dial diamter: 57 mm
• Total length: 121 mm
• Range: 0....100
• Accuracy: ±0,5
• Resolution: 1
• Drag pointer: Optional
• Net weight: 0,184 g
• Available types:
  DIN 53505, ISO 868, ISO 7619:
  A, D
• ISO 7619: A, AO, D
• ASTM D 2240:
  A, D, C, B, DO, O
