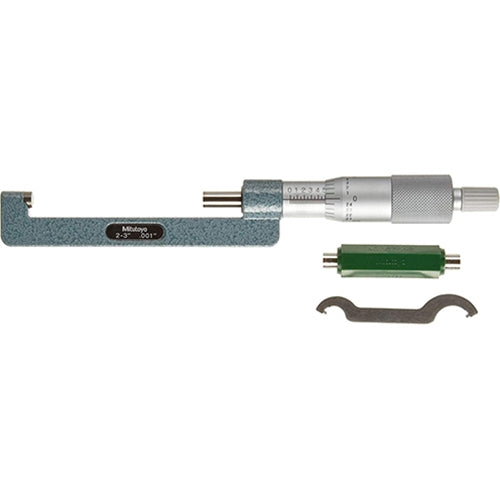

Mitutoyo Hub Micrometer 2-3" 147-353

Name: Mitutoyo Hub Micrometer 2-3" 147-353
Brand: Mitutoyo
SKU: 147-353
Price: 204.0 GBP
Availability: InStock

MitutoyoSKU: 147-353

List price: £280.00 Offer price: £204.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10 +£41.00 Part number: 156-101-10 → View product

Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +£31.00 Part number: 156-105-10 → View product

MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm +£595.00 Part number: MMI-10 → View product

MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm +£495.00 Part number: MMi-8 → View product

Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0 +£492.00 Part number: 516-106-10 → View product

Overview Technical Information Applications Videos & Documents

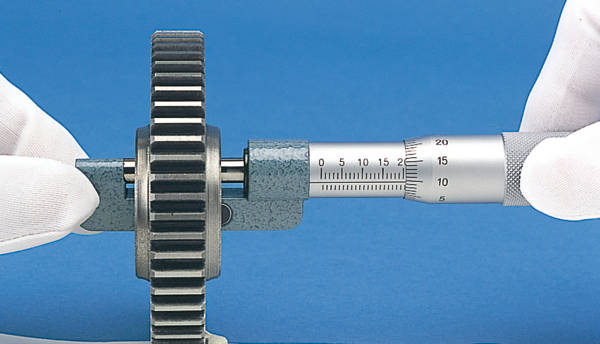

A Mitutoyo non-digital micrometer for measuring hub thickness and shoulder width inside a hole. A ratchet stop guarantees repeatable measurement.

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Inch
Range:	2 - 3 "
Graduation:	0,001"
Max. Permissible Error J MPE:	±0,0001"
Parallelism:	0,00012"
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N

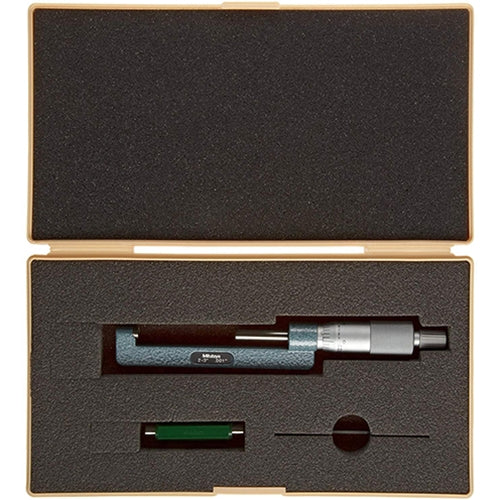

Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	170 g
