MitutoyoSKU: 147-303
List price: £280.00 Offer price: £204.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

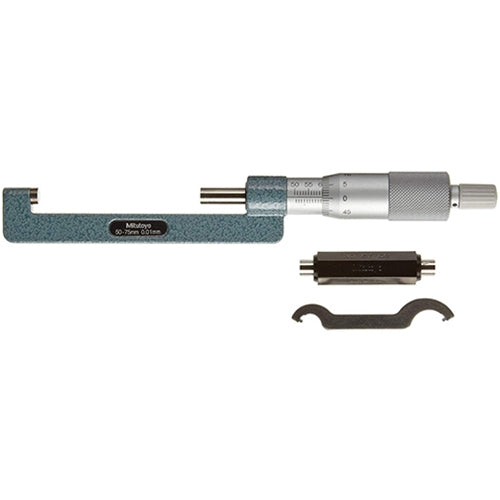

A Mitutoyo non-digital micrometer for measuring hub thickness and shoulder width inside a hole. A ratchet stop guarantees repeatable measurement.

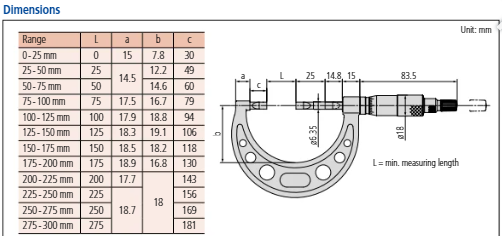

Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
50 - 75 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±2 µm
Flatness:
0,6 µm
Parallelism:
3 µm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
170 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Hub Micrometer 50-75mm 147-303 Click to open the PDF document
