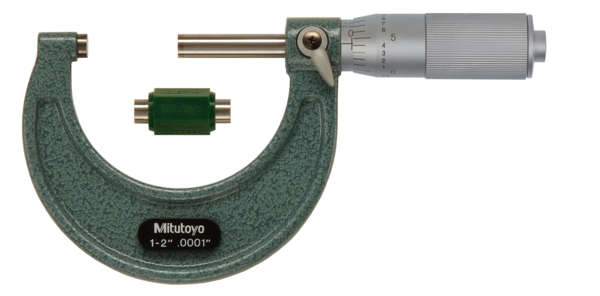

Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-136 Friction Thimble
Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-136 Friction Thimble
Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-136 Friction Thimble
Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-136 Friction Thimble
Roll over image to zoom in Click on image to zoom
Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-136 Friction ThimbleMitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-136 Friction ThimbleMitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-136 Friction ThimbleMitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-136 Friction Thimble

Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-136 Friction Thimble

MitutoyoSKU: 103-136
List price: £115.00 Offer price: £84.00 Excluding VAT

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Metric Analogue Outside Micrometer 400-425mm, Ratchet Stop 103-153
Part number: 103-153  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£10.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
A basic, cost effective, non-digital Mitutoyo micrometer with a ratchet stop to guarantee repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:
Including box, key, setting standard, certificate of inspection
Inch-Metric:
Inch
Range:
1 - 2 "
Graduation:
0,0001"
Max.
Permissible Error
J MPE:
±0,0001"
Flatness:
0,000024"
Parallelism:
0,00008"
Remarks:
With friction thimble
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm (?300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
215 g

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
