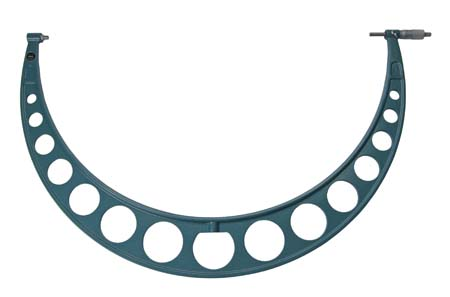

Mitutoyo Imperial Analogue Outside Micrometer 14-15", Ratchet Stop 103-191

MitutoyoSKU: 103-191
List price: £347.00 Offer price: £253.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod 300-450mm
£35.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Imperial Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.



    Specifications

    • Digital/Analog: Analog
    • Inch-Metric: Inch
    • Graduation: 0,001"
    • Maximum Permissible Error J MPE: ±0.001"
    • Flatness: 0.000024"
    • Parallelism: 0.00008"
    • Measuring spindle: With spindle lock, ø6,35 mm (?300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
    • Scale: Thimble and sleeve satin chrome finish, ø18 mm
    • Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
    • Delivered: Including box, setting standard (from 1" upward), key, certificate of inspection (0-2" range)
    • Mass: 175 g

    All images are for representation only.
