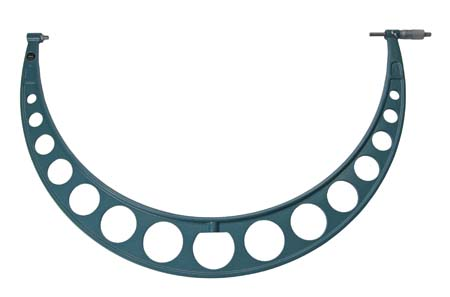

Imperial Analogue Outside Micrometer - Ratchet Stop
Series 103
A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.
Specifications
- Digital/Analog: Analog
- Inch-Metric: Inch
- Graduation: 0,001"
- Maximum Permissible Error J MPE: ±0.001"
- Flatness: 0.000024"
- Parallelism: 0.00008"
- Measuring spindle: With spindle lock, ø6,35 mm (?300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
- Delivered: Including box, setting standard (from 1" upward), key, certificate of inspection (0-2" range)
- Mass: 175 g
No technical information is currently available.
No application information is currently available.
